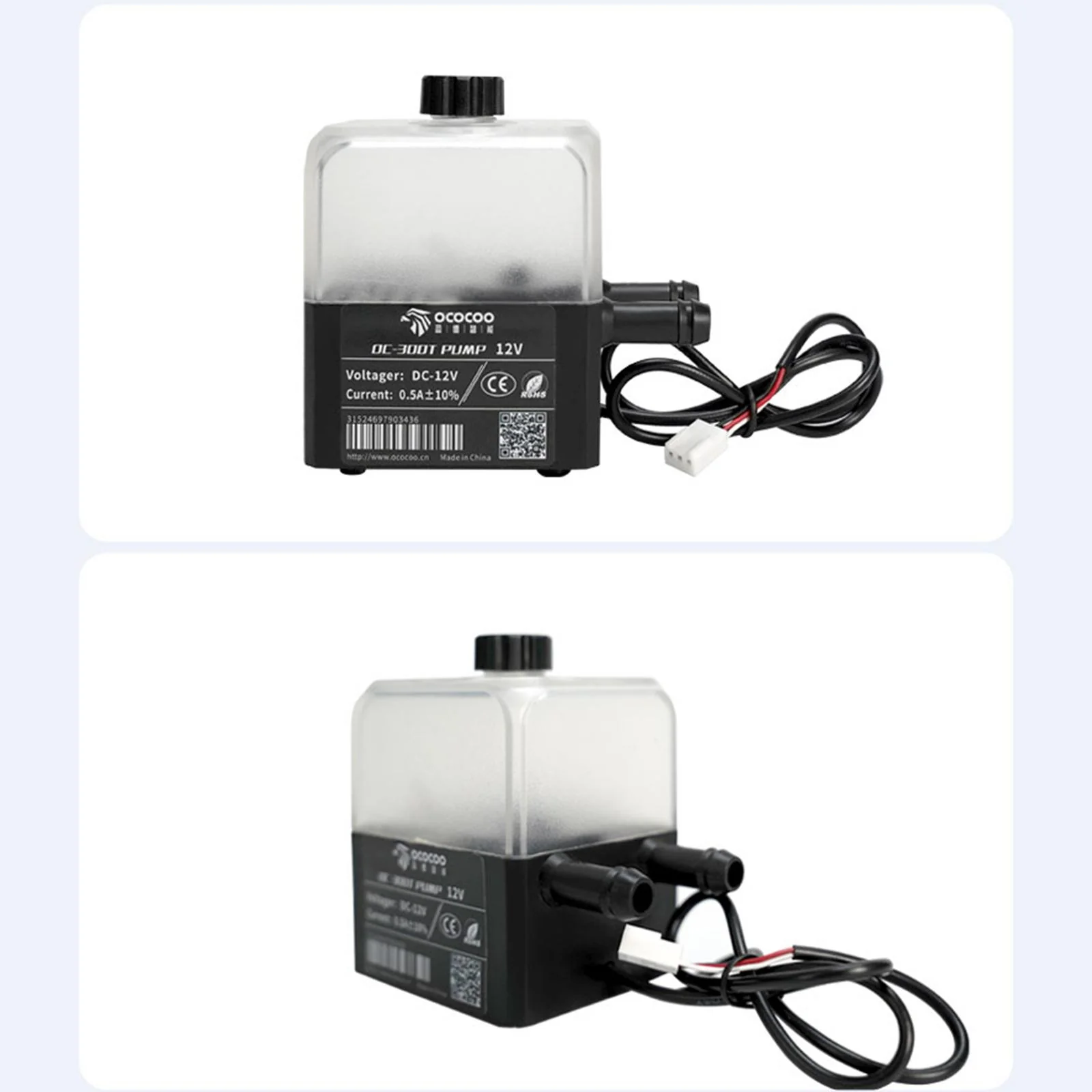

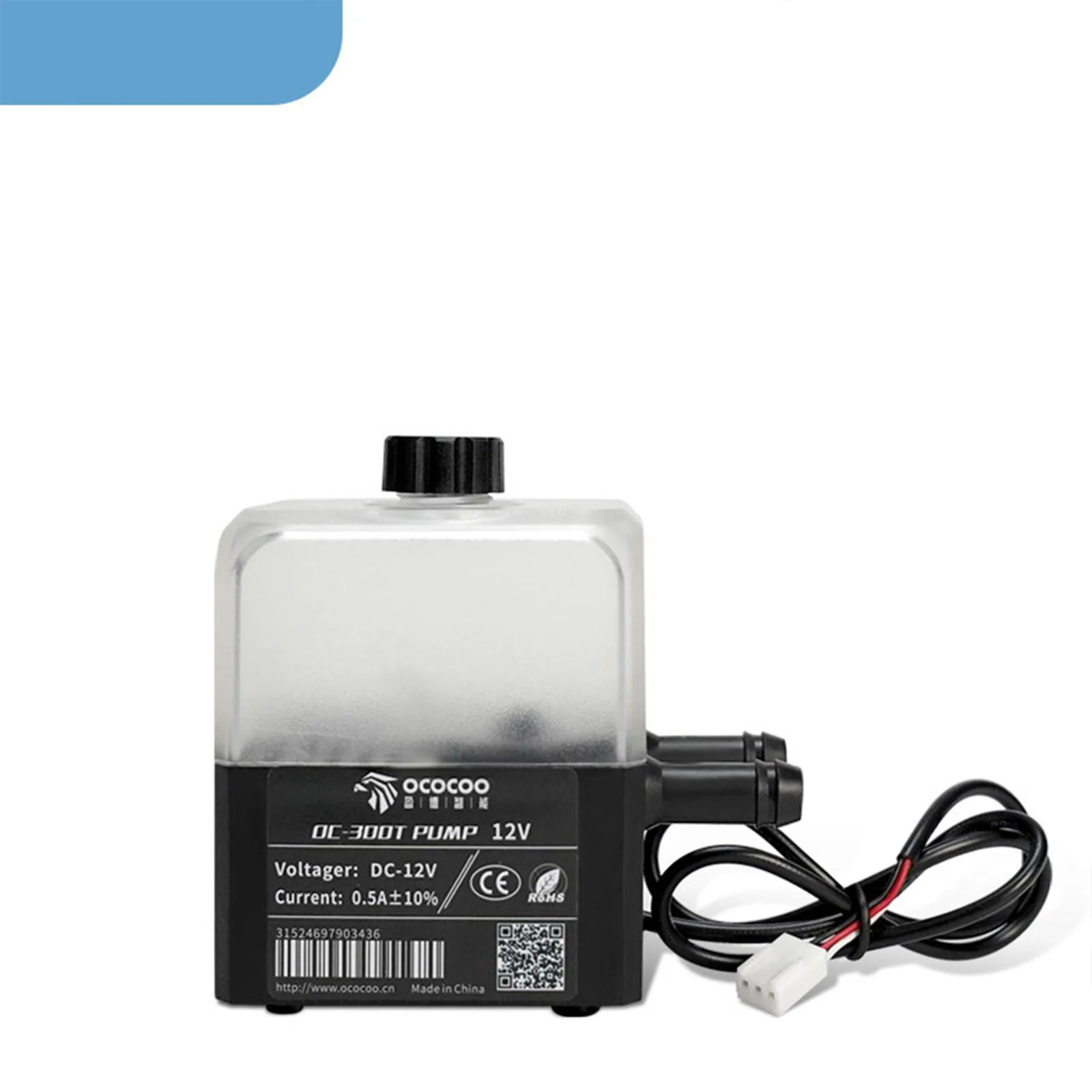

Water Cooling Pump Reservoir Set Easy Install DIY 5L/Min Accessory 12V Quiet 80mm Fan

Description:

- 【Quiet & Efficient Cooling】: Experience silent operation at just 23dB, . The  brushless DC motor and optimized flow design ensure rapid and effective coolant circulation, providing  heat dissipation for your system with a maximum flow rate of 5L/min
- 【LeakProof Design】: With ceramic bearings. The  pump and reservoir feature welded construction, provide secure, leakproof structure
- 【Compact & Versatile Application】: Water Cooling Pumpe Reservoir Set is for PC loops, laptops, electric motorcycles, engravers, and other DIY electronics projects
- 【 Material】: Water Cooling Pump Reservoir made of ABS material,which is sturdy for long term use
- 【Easy Installation】: Powered by a standard 12V source via a small 3 pin connector. It features a universal G1/4 threaded fill port and fixed N8 barbs designed for 8mm-9.5mm inner diameter soft tubing, making it compatible  common DIY water cooling

Specification:

- Operating Current: 12V - 0.5A / 24V - 0.25A
- Maximum Flow Rate: 5L/MIN
- Maximum Lift: 1.9M
- Power: 6W
- Water Tank Capacity: 101.5mL
- Filling Port: G1/4 Thread, 2 Point Thread
- Nipple Diameter: N8
- Operating Temperature: -10-60°C
- Note: Red wire is DC12V positive, black wire is negative, and white wire is speed measurement wire

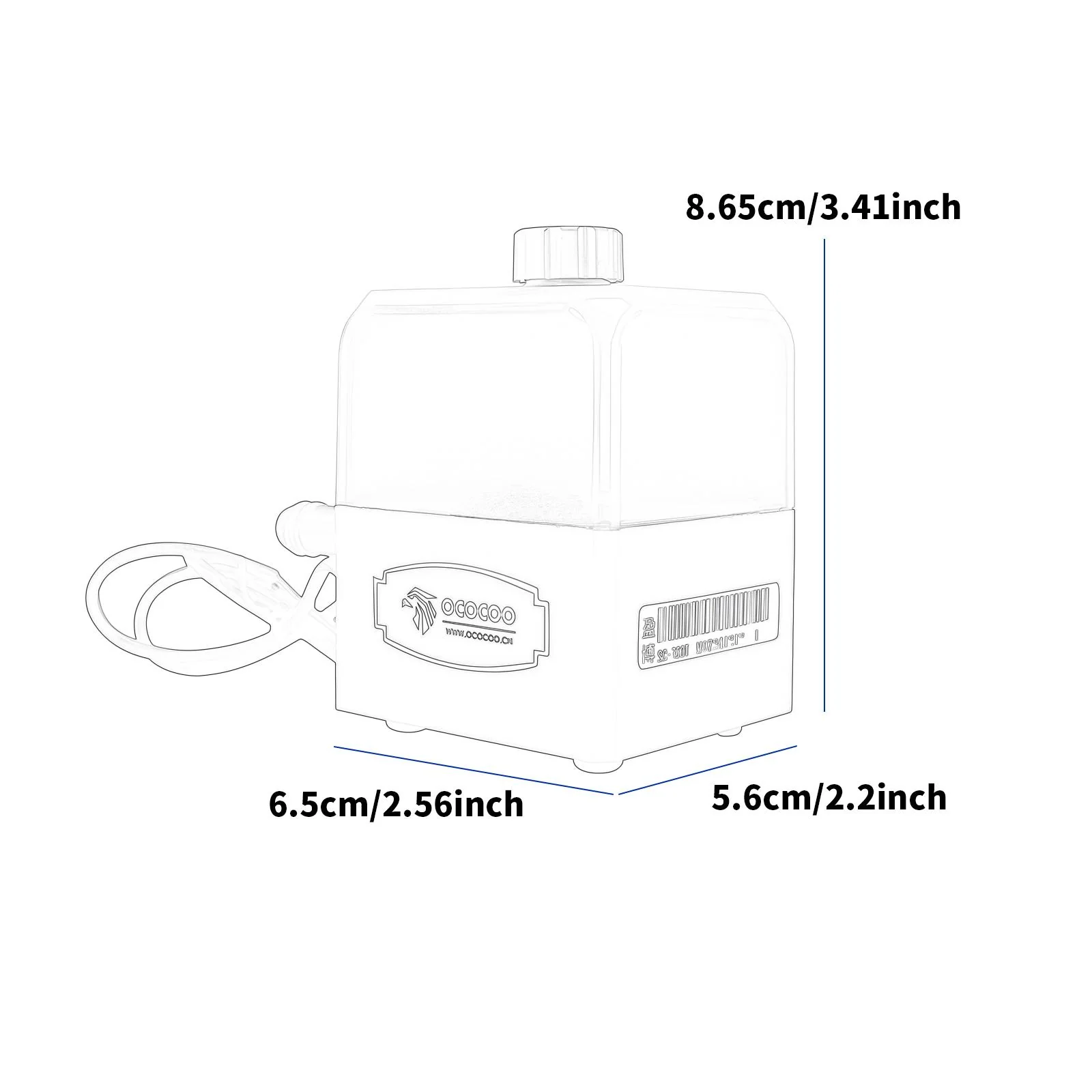

Size Chart:

Pump 6.5cmx5.6cmx8.65cm/2.56inchx2.20inchx3.41inch

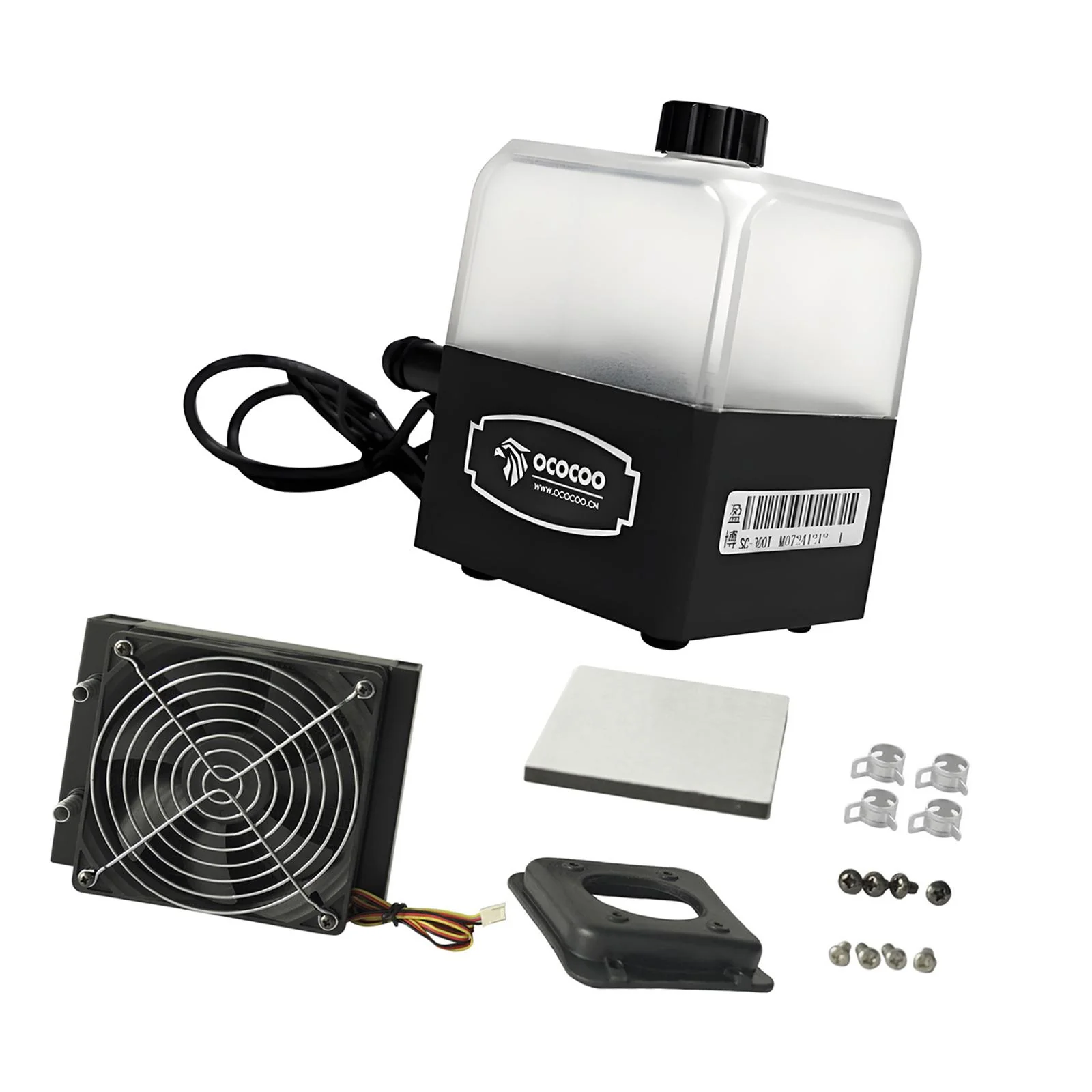

Package Includes:

1 aluminum exhaust fan
1 pump
1 Double sided tape
1 Shock absorber pad
4 Spring clips
8 Screws
