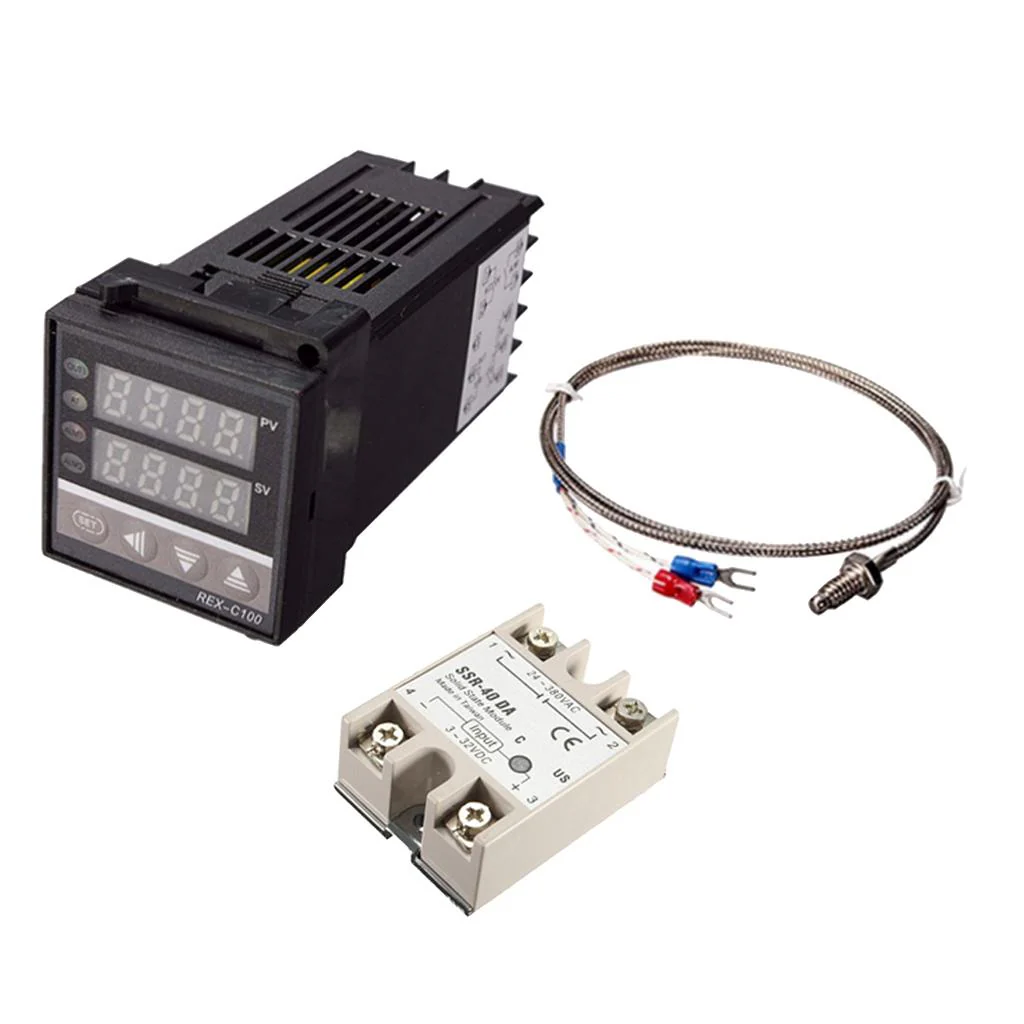

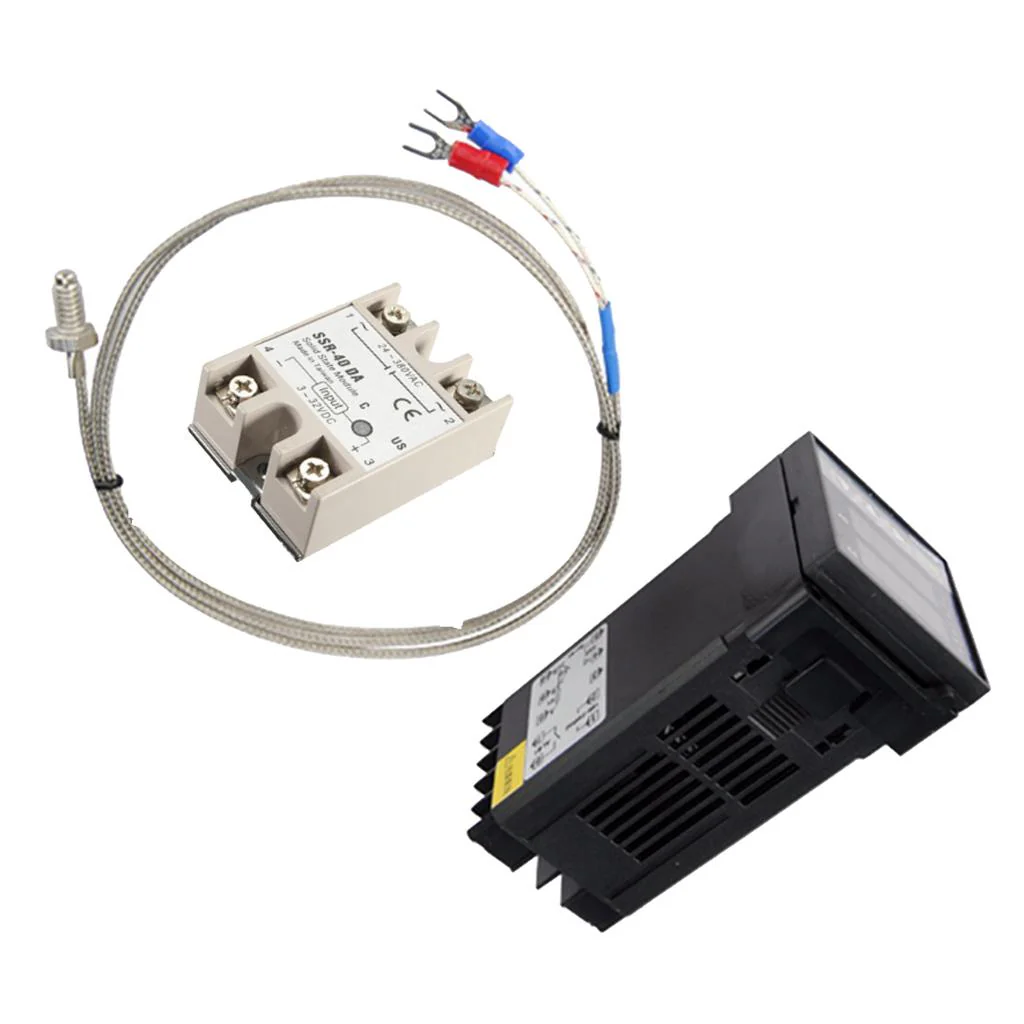

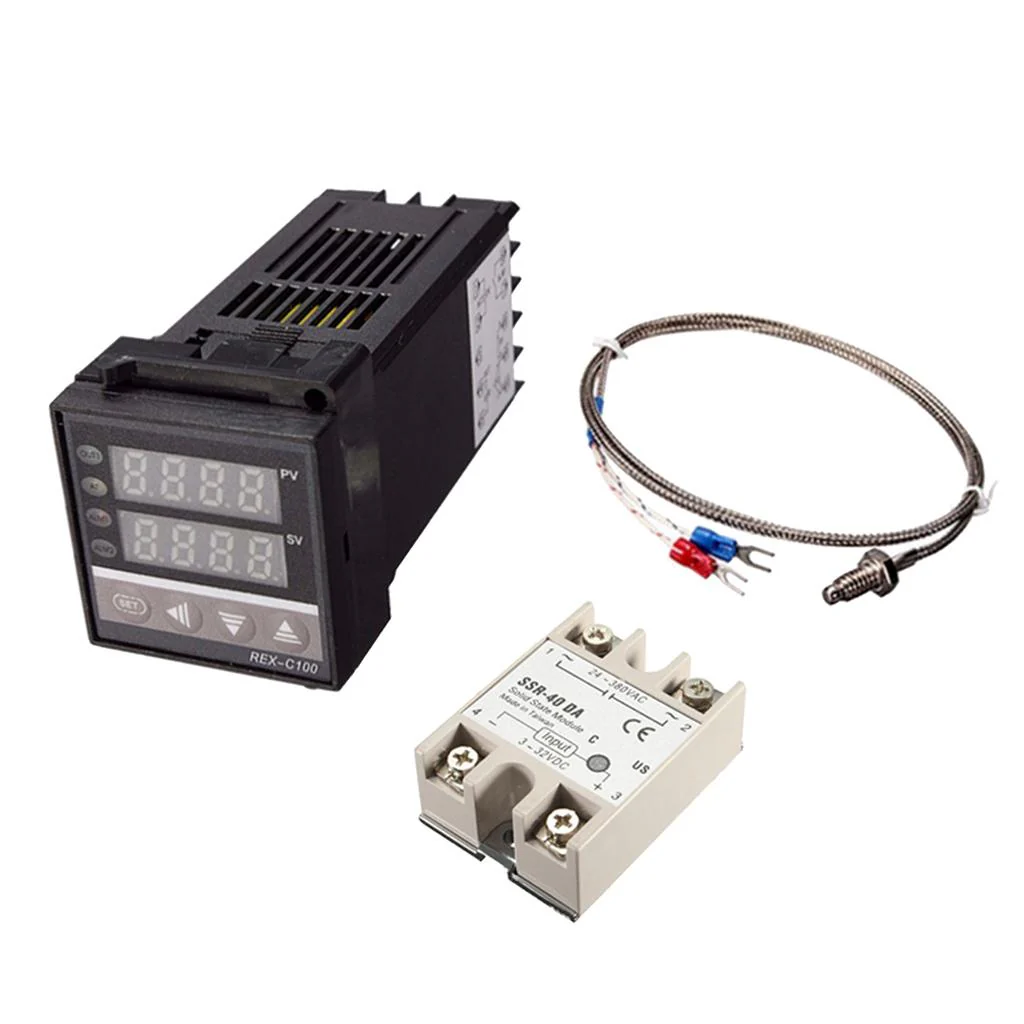

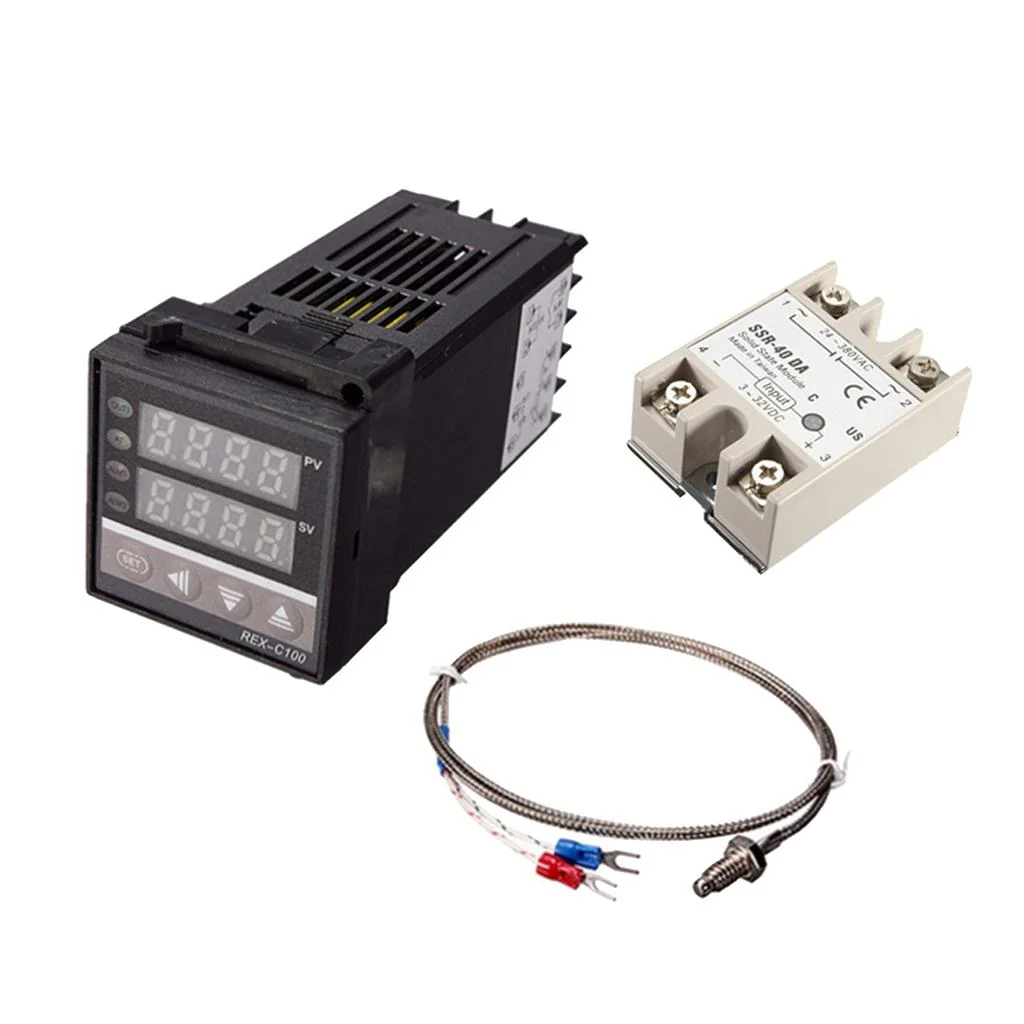

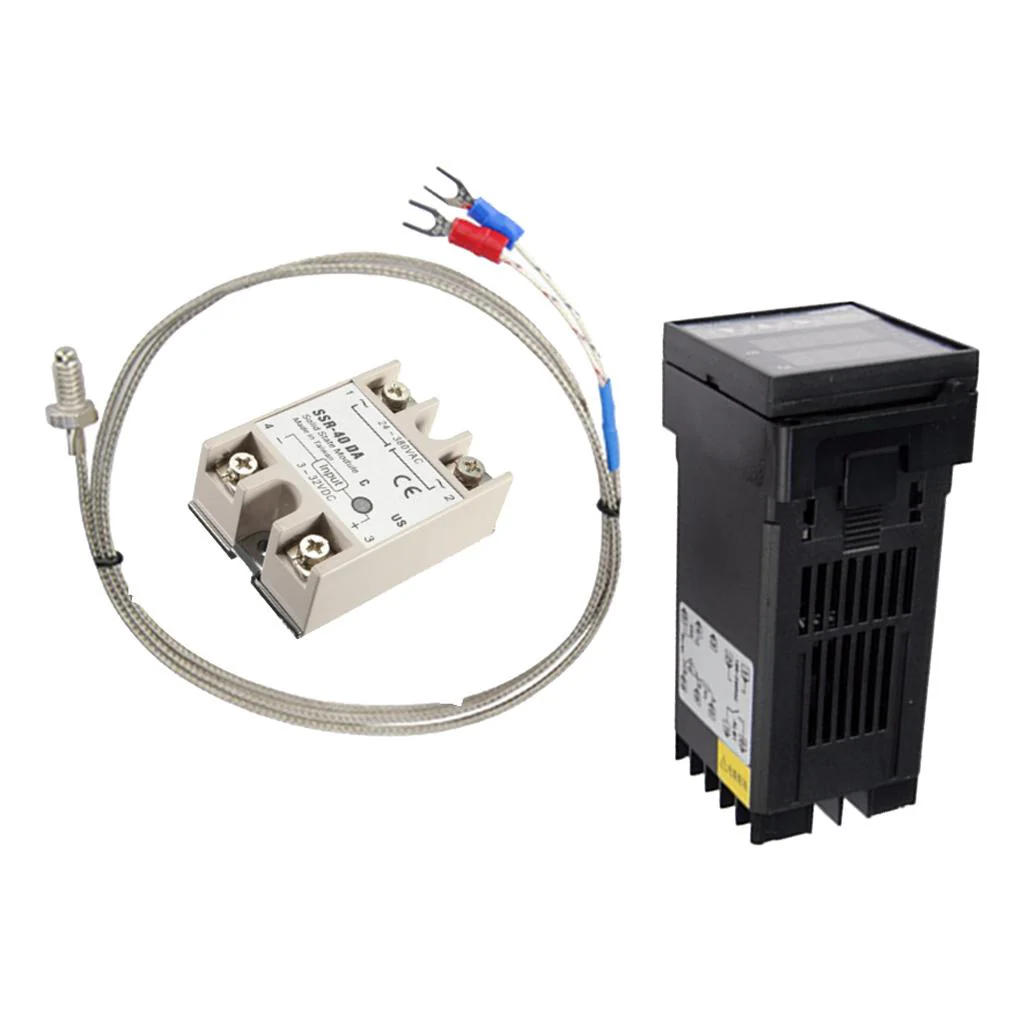

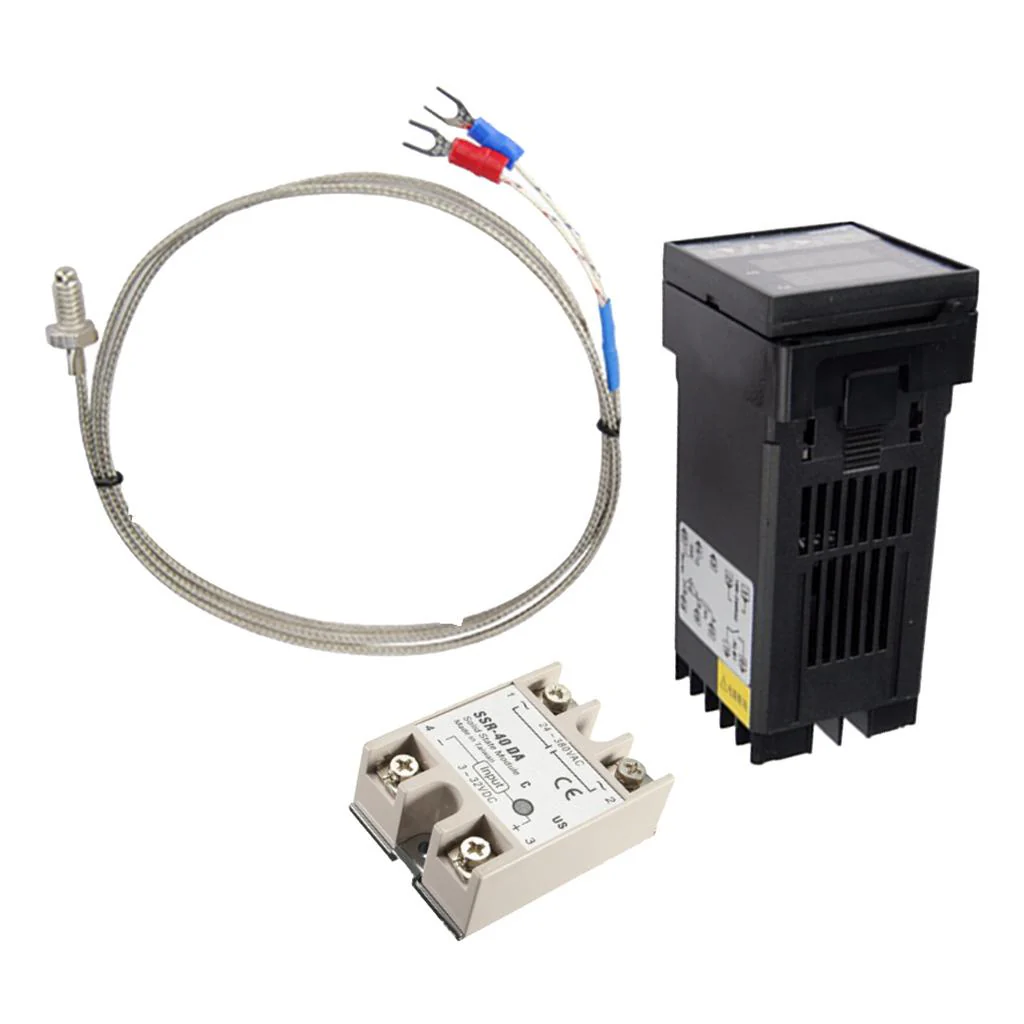

5xDigital PID REX-C100 Temperature Controller+max.40A SSR K Thermocouple Set

Description:

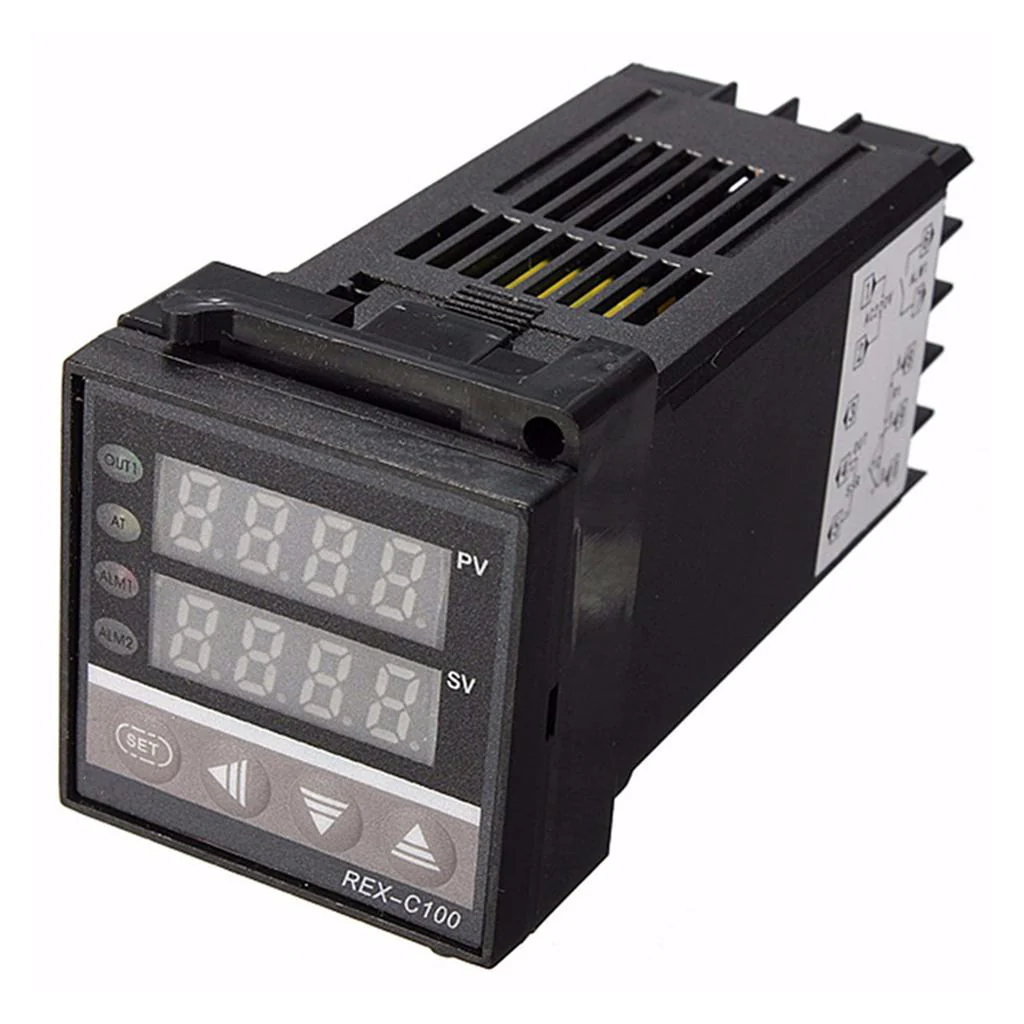

REX-C100 Temperature Controller
1.Measuring accuracy: ±0.5%FS
2.Cold-end compensation tolerance: ±2℃（can be modified by software in 0~50℃）
3.Resolution: 14 bit
4.Sampling cycle: 0.5 Sec
5. Power : AC 100-240V 50/60HZ
6.Process value (PV), Setting value (SV)
7.PIN control (including ON/OFF, step-type PID and continuous PID)
8.Self-tuning control
9.Relay output: contact capacity 250V AC 3A (resistive load)
10.Proportional band (P): 0~full range (ON/OFF control when set to 0)
11.Detective temperature range：0 to 400℃
12.Insulation resistance: >50M ohm(500V DC)
13.Insulation resistance : 1500V AC/min
14.Insulation resistance : Power Consumption < 10 VA
15.Service environment: 0~50℃
16.environment with no corrosive gas 30~85% RH

K Thermocouple Probe Cable
1.Length: 1M
2.Sensor diameter:4.5mm
3.Temperature rang :0-400℃
4.Internal Insulation: Fiberglass
5.External Shielding: Insulated Shielding

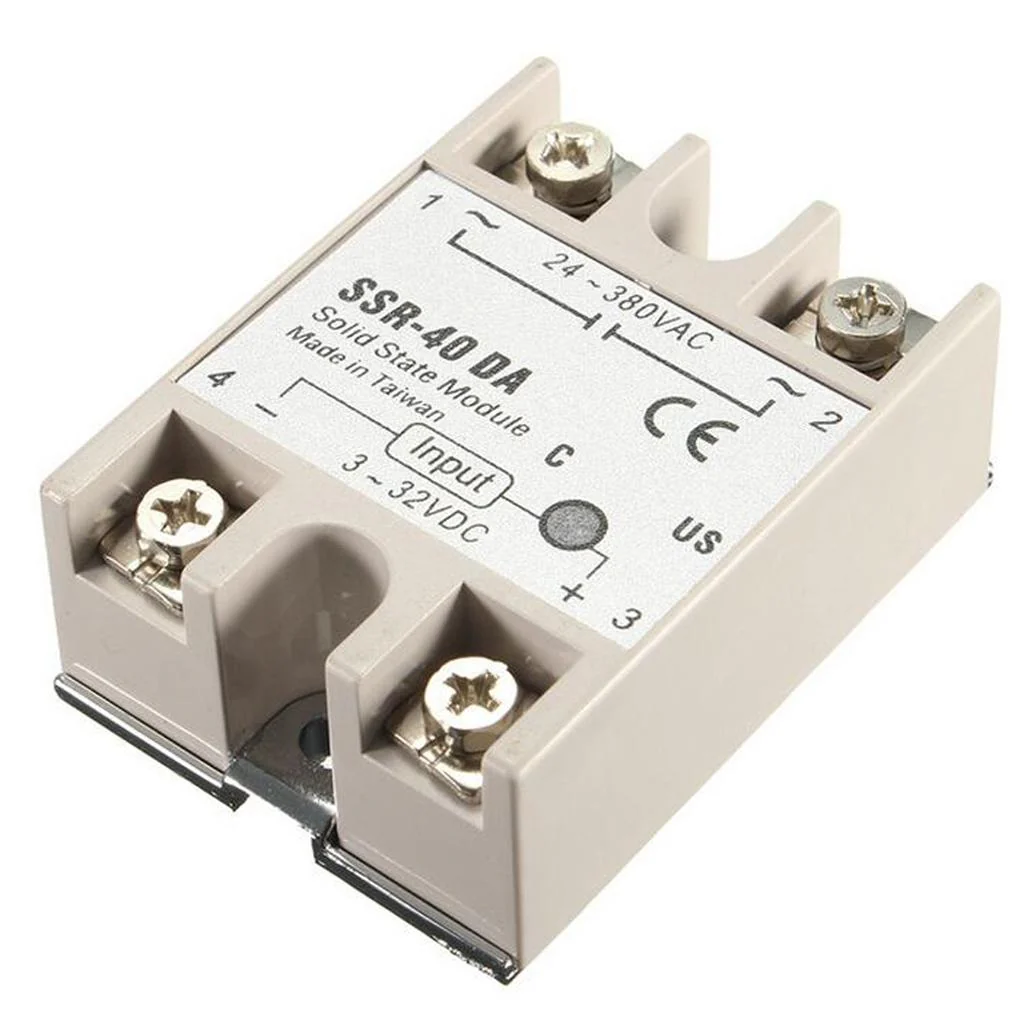

Max.40A SSR
1.Output Current:40A
2.Input Voltage:DC 3-32V
3.Output Voltage:24-380V AC
4.Output Voltage Range:Standard Type

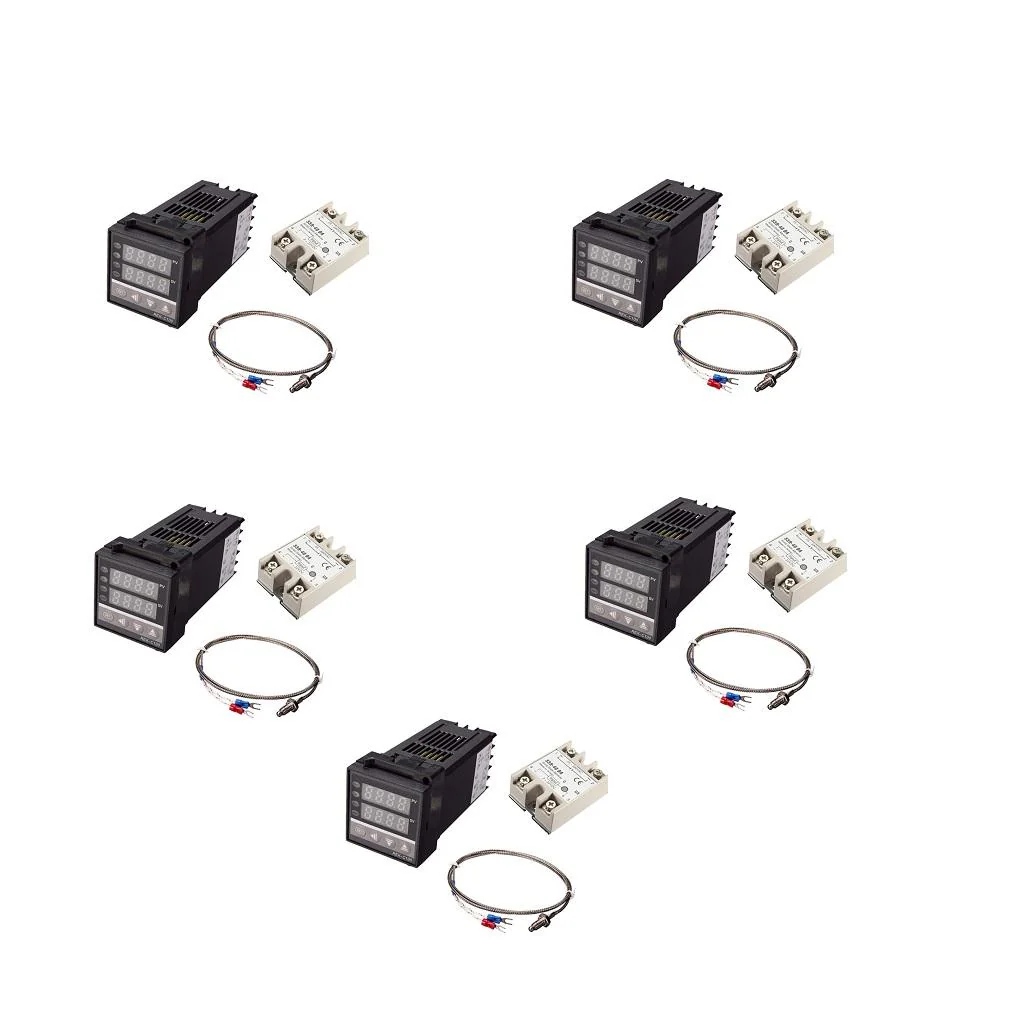

Package Includes:

5 x PID Temperature Controller
5 x K Type Probe Sensor
5 x Max.40A SSR

Note:

This controller is 3 digit setup values, no COD hidden menu function!
The user manual of this product we supplier offered is universal manual,not specialized for this REX-C100 Temperature Controller, so features and specifications are subject to our description!
