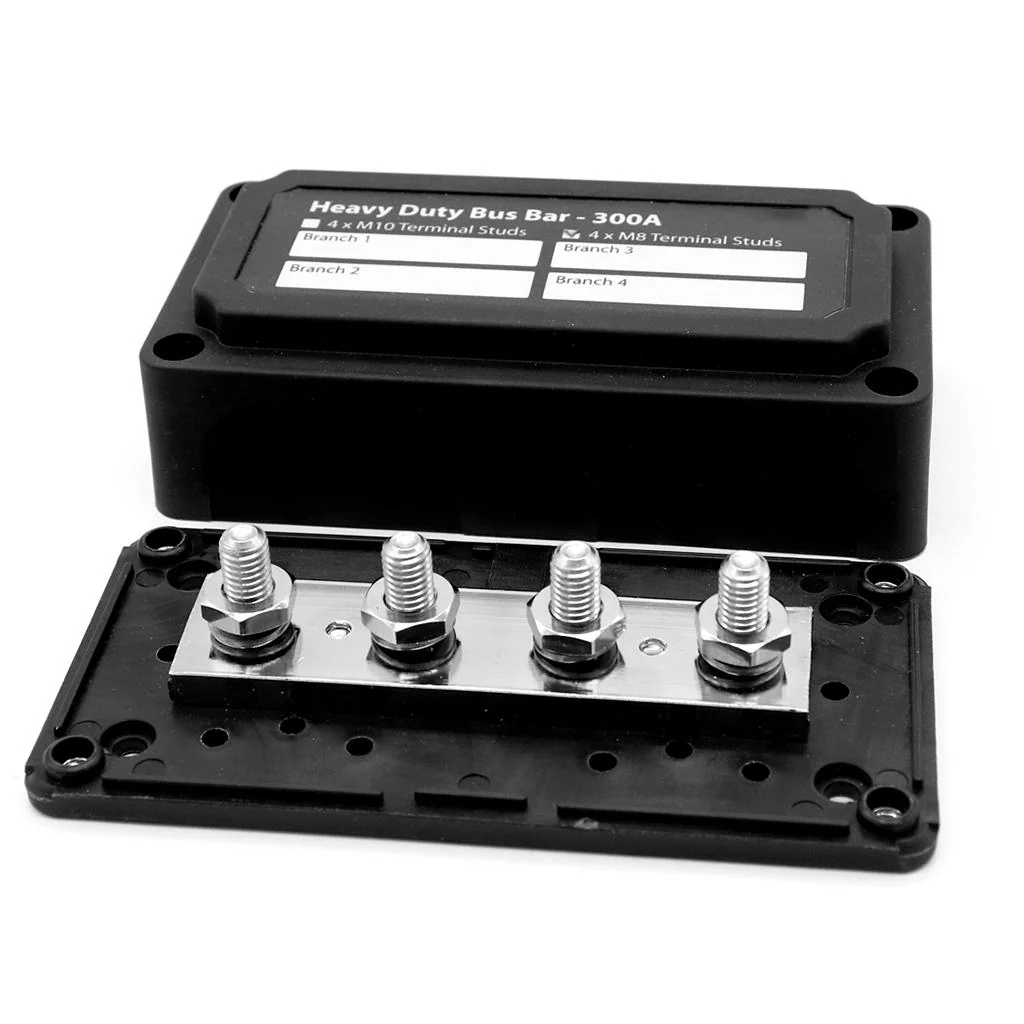

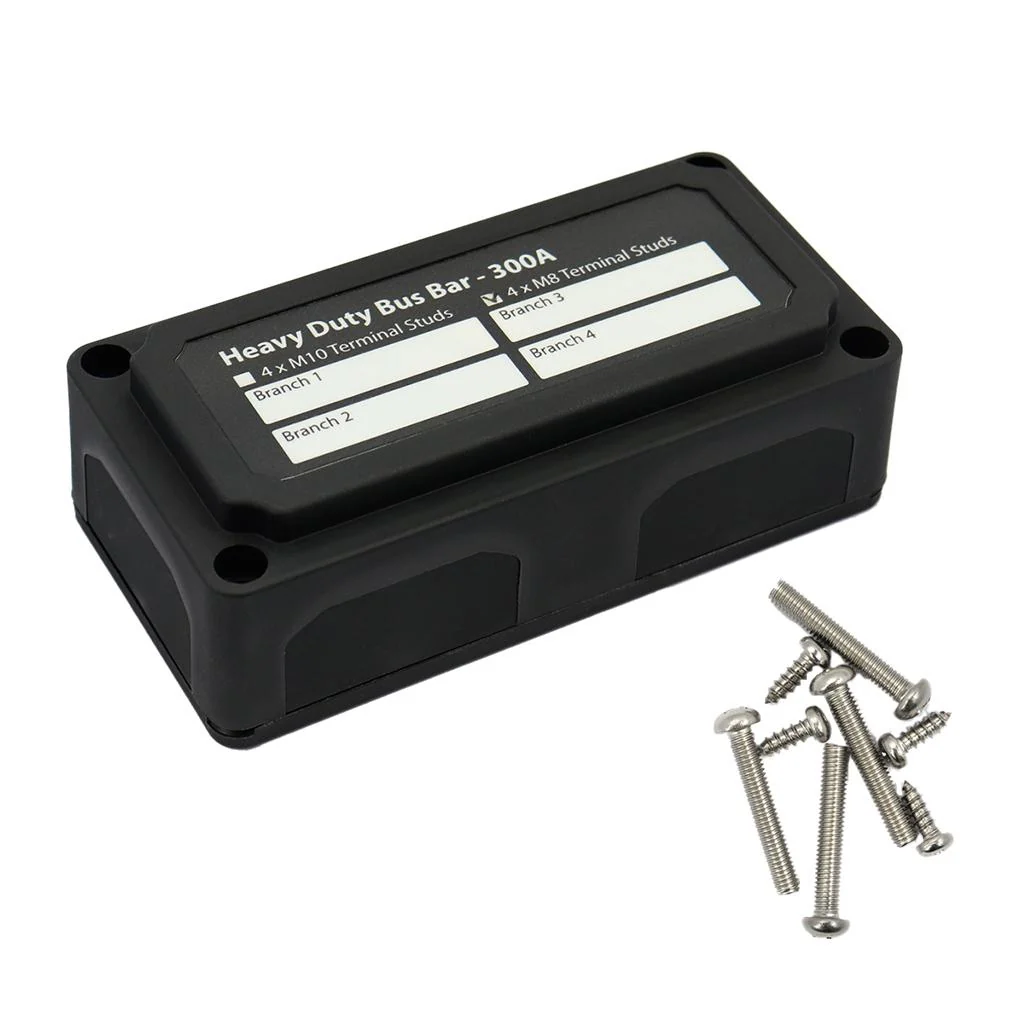

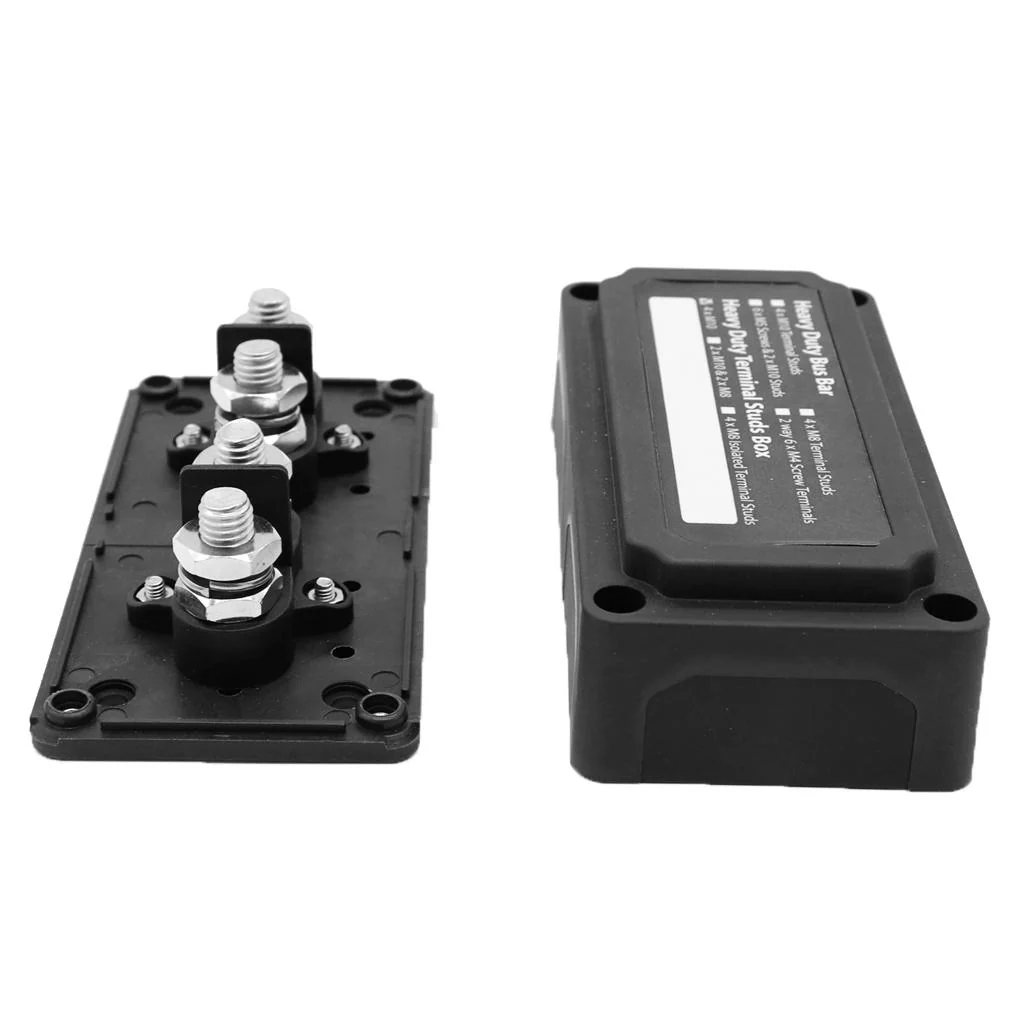

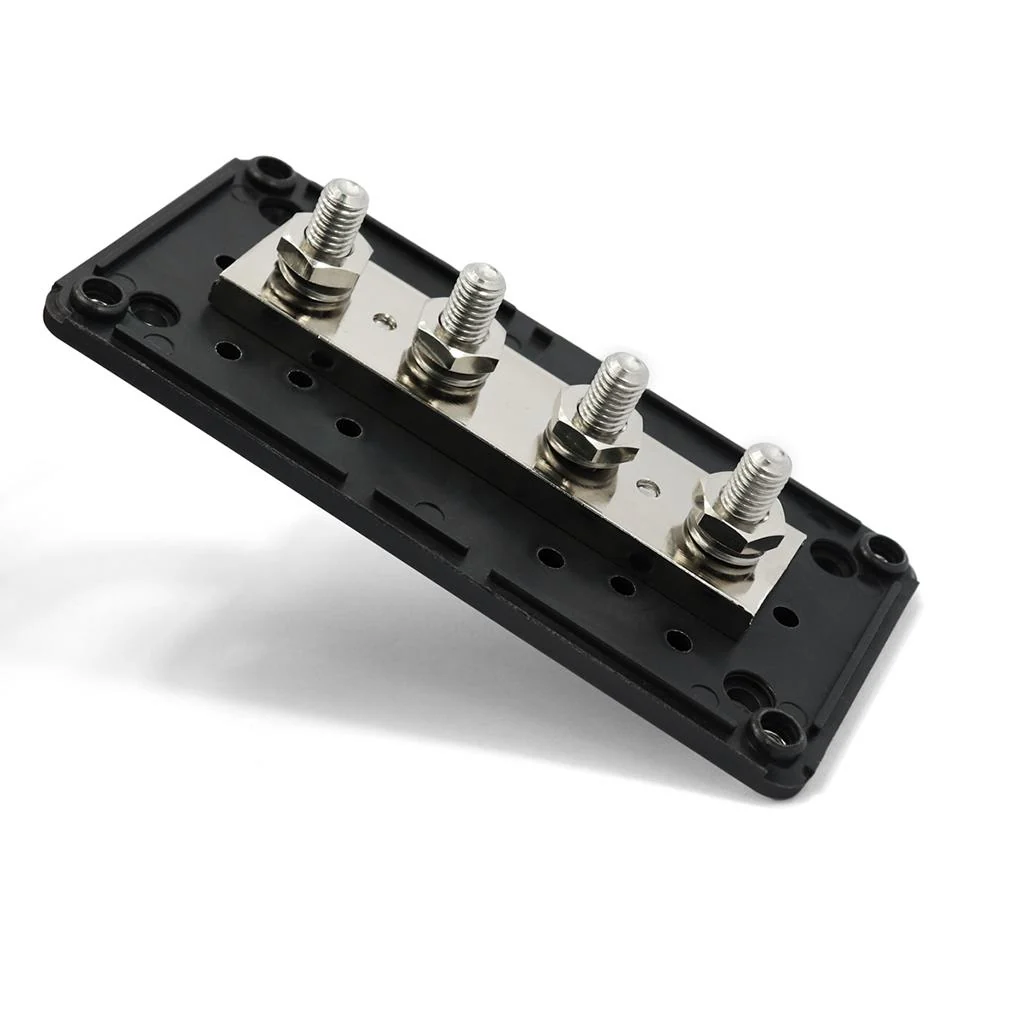

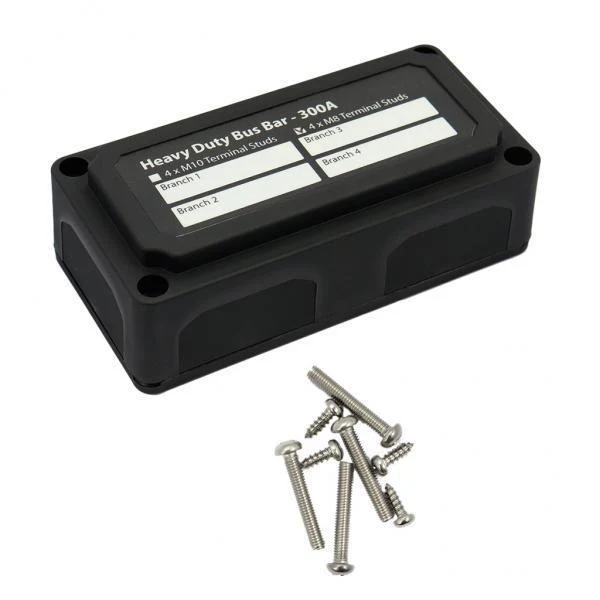

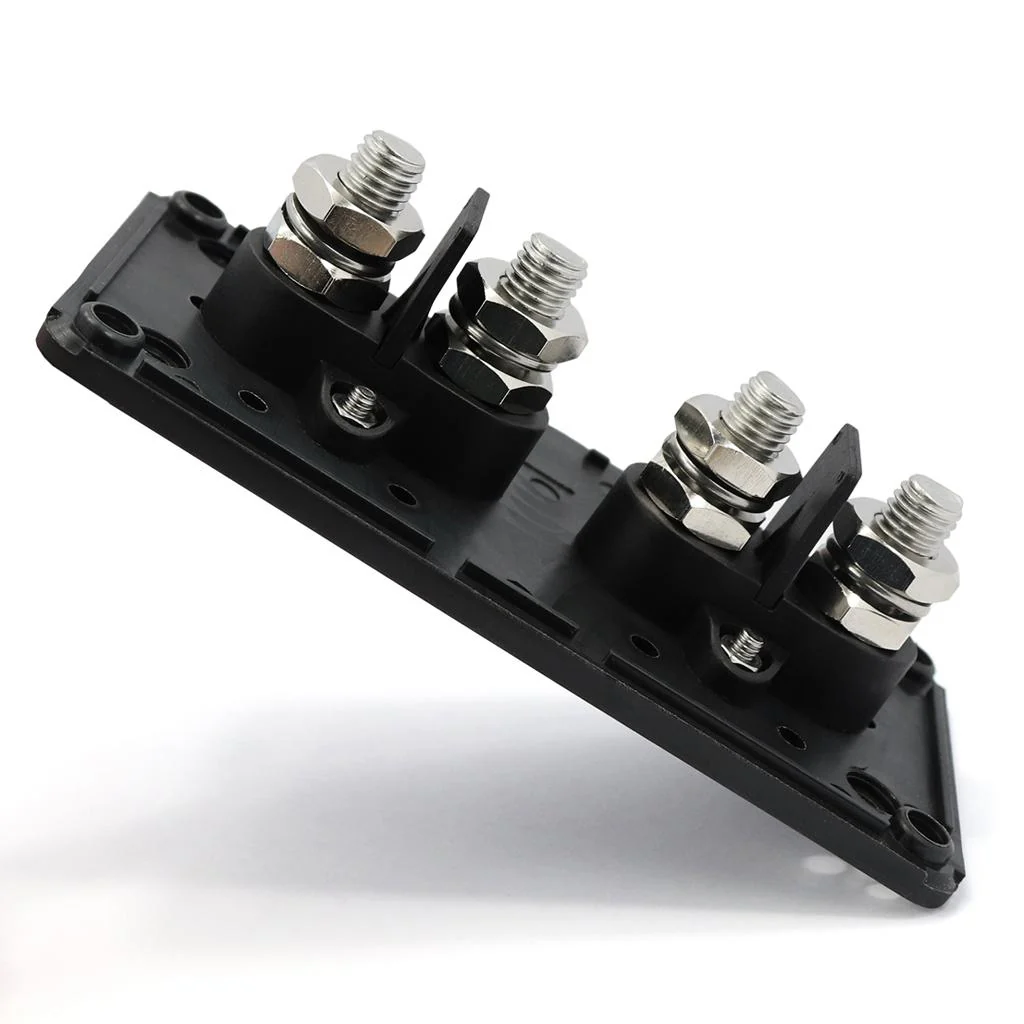

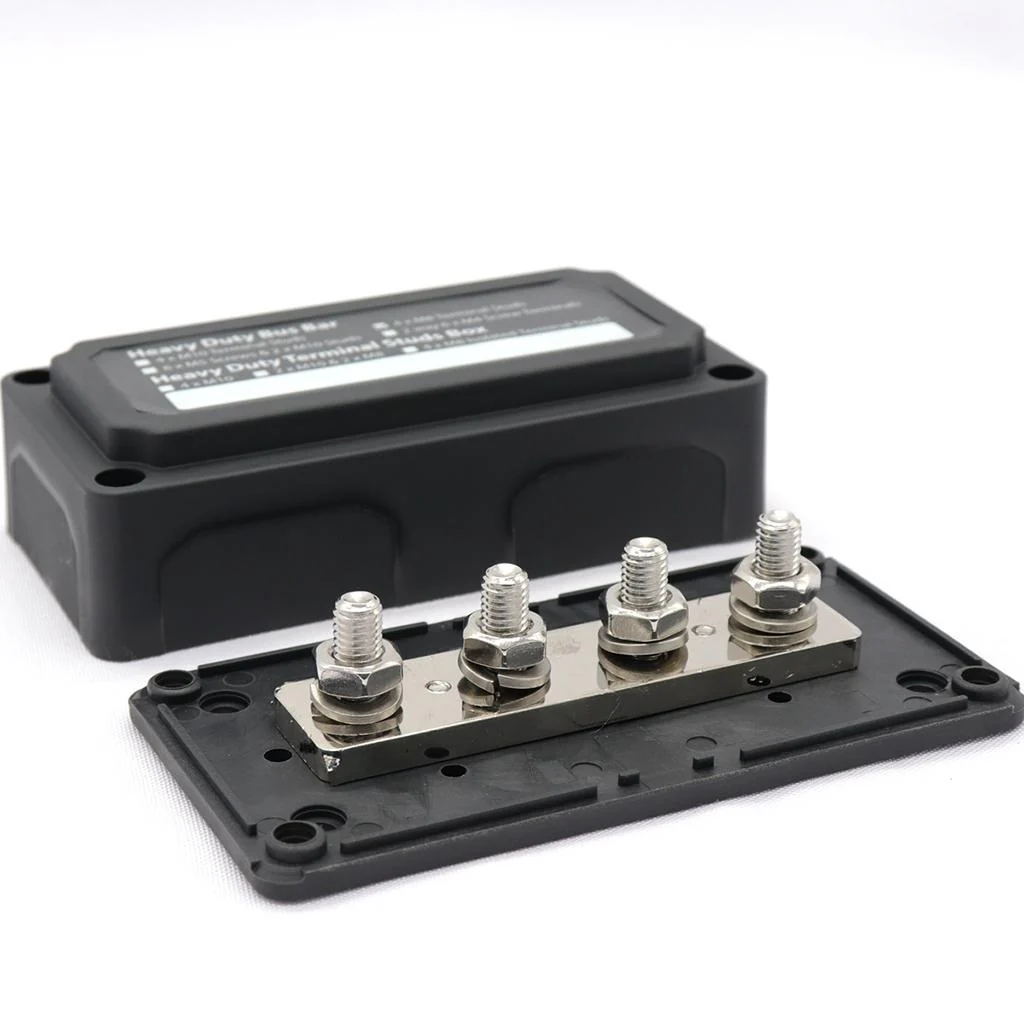

3xHeavy Duty 4 Way Bus Bar/Power Distribution Box for Screw On Cover 300A

Description:

Features Highest amperage rated bus bar (300A) with M8 terminal studs (also available in M10)

Module box design for easy wiring configurations

Glass Fiber reinforced Nylon base and enclosure ensures great mechanical strength and durability

Removable windows for unobstructed wiring

Blank write-on space on the top allows easy labeling for each branch

Specification:

Base & Cover Material:Nylon, Glass Fiber reinforced

Bus Material: Brass, Nickel plated

Max Operating Voltage: DC 48V

Max Continuous Amp: 300A

Terminal Stud Size: 4x M8 (5/16")

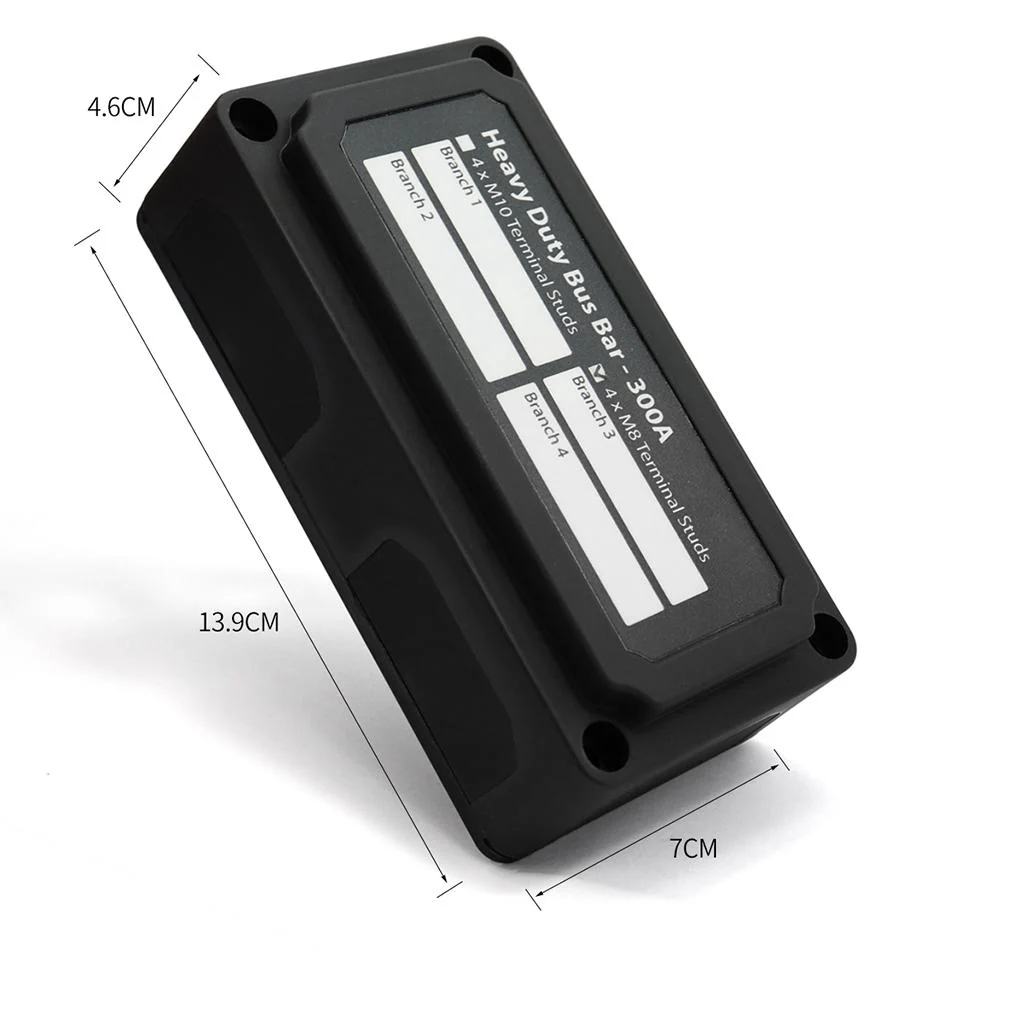

Dimensions (L x W x H): 138 x 69 x 44.5mm / 5.4 x 2.7 x 1.7 inch

Package Includes:

4 Pieces Studs

4 Pieces Screws

1 Piece Distribution Box(3 Pack)

Note:

1.We provide clear pictures, measurements where possible. Please check as much as possible to make sure the item is the that you need.

2. Please allow 0.5-1 inch difference due to manual measurement.(1 inch=2.54cm)

3. Instruction is not included.

Due to the difference between different monitors, the picture may not reflect the actual color of the item. Please understand,Thank you.
