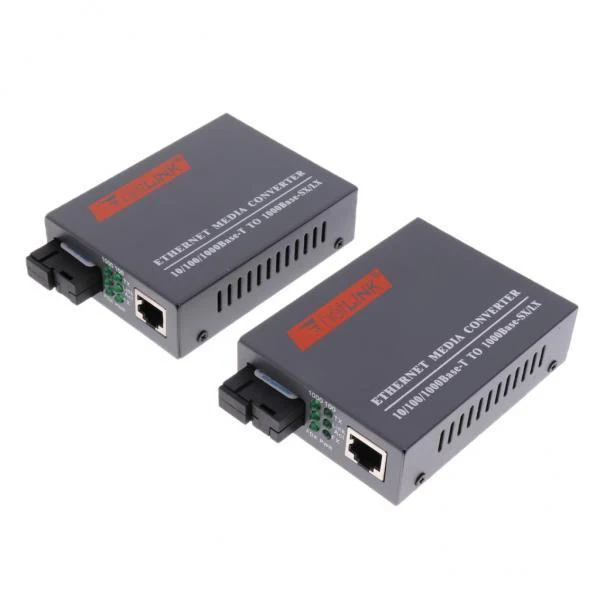

3x100/1000M Gigbit Ethernet to Fiber optic Media Converters SC Singlemode 25KM

Description:

1 electrical port and 1 single-fiber SC optical port to achieve photoelectric signal conversion between twisted pair and optical fiber.
Only a single core fiber can complete the signal transmission of one way, and double the fiber to increase the data transmission capacity of the fiber by a factor of two.
Complies with IEEE802.3 10Base-T and IEEE802.3u 100Base-TX, 100Base-FX standard.
Has 10M/100M self-adaptive ability.
The electrical port can adapt the direct line/cross line connection mode.

Specification:

Supports full-duplex/half-duplex mode of operation.
Support IEEE802.3X full-duplex flow control and half-duplex back pressure flow control.
Support to prevent broadcast storm function;
Support for 1916 Byte jumbo frames (optional).
Built-in lightning protection circuit can greatly reduce the damage caused by lightning induction.
Twisted pair cables are up to 100 meters long; single mode fibers are up to 100 kilometers long.
There are 6 LED indicators: Power, TX 100, TX Link/Act, FX 100, FX Link/Act, FDX/Col; it is easy to monitor the working status of the transceiver and determine the cause of the fault.
There are two types of external, built-in power: AC100 ~ 265V / DC5V switching power supply.

Package Includes:

2 Pieces Fiber Optic Converter(3 Pack)
1 Piece Instruction manual(3 Pack)
