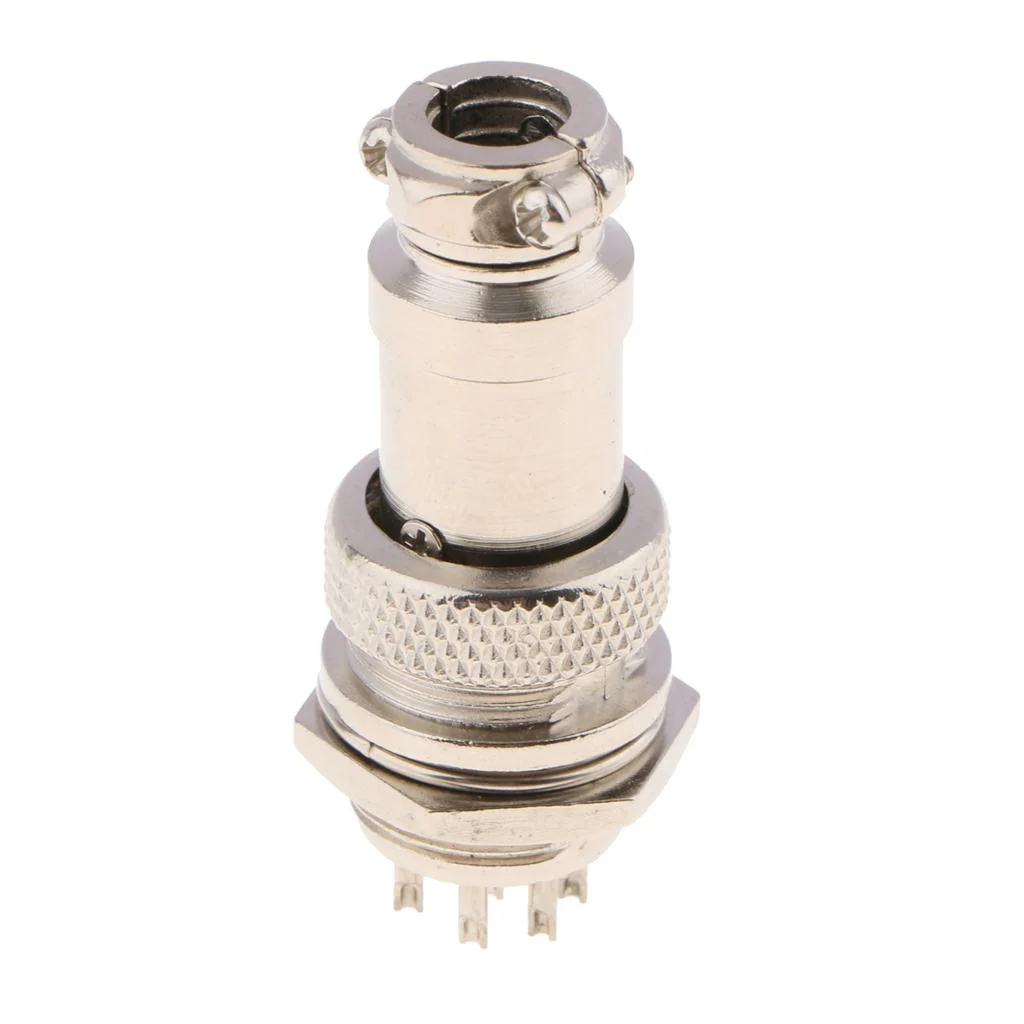

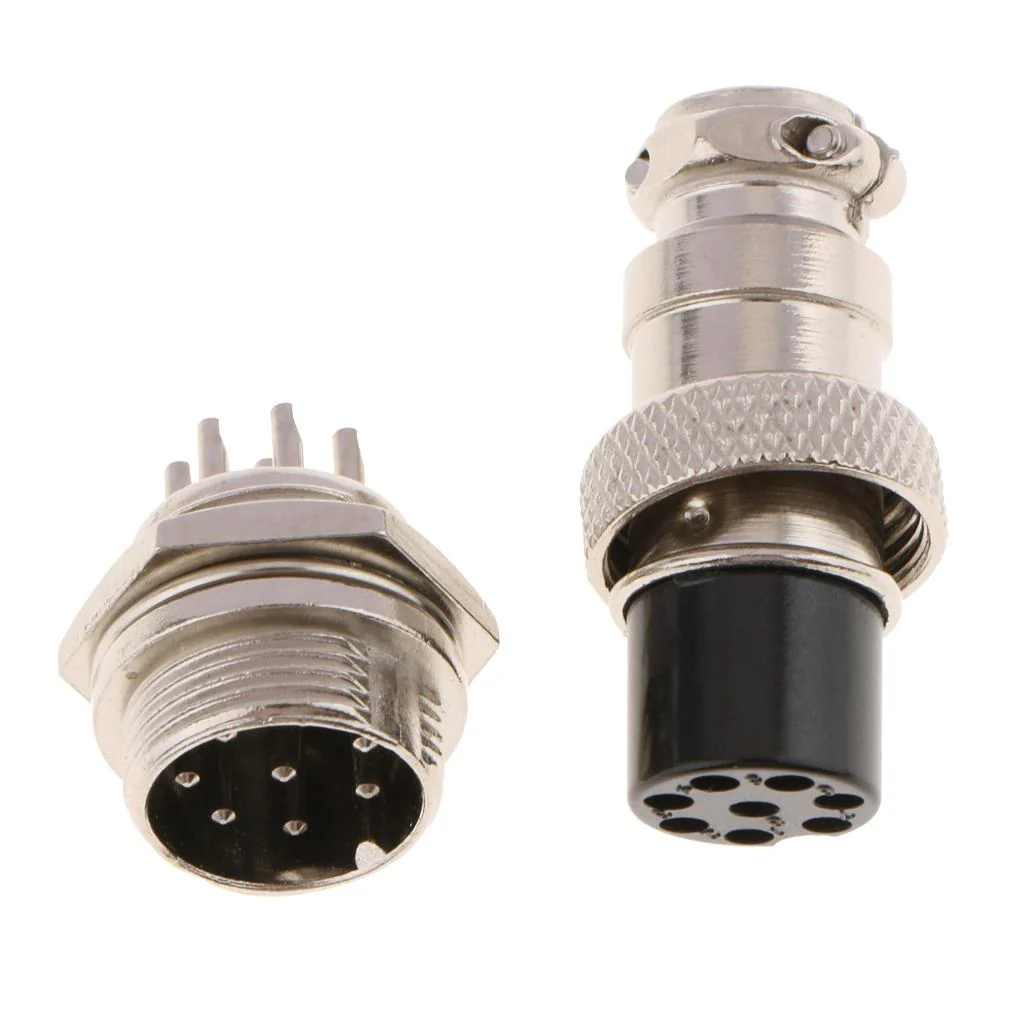

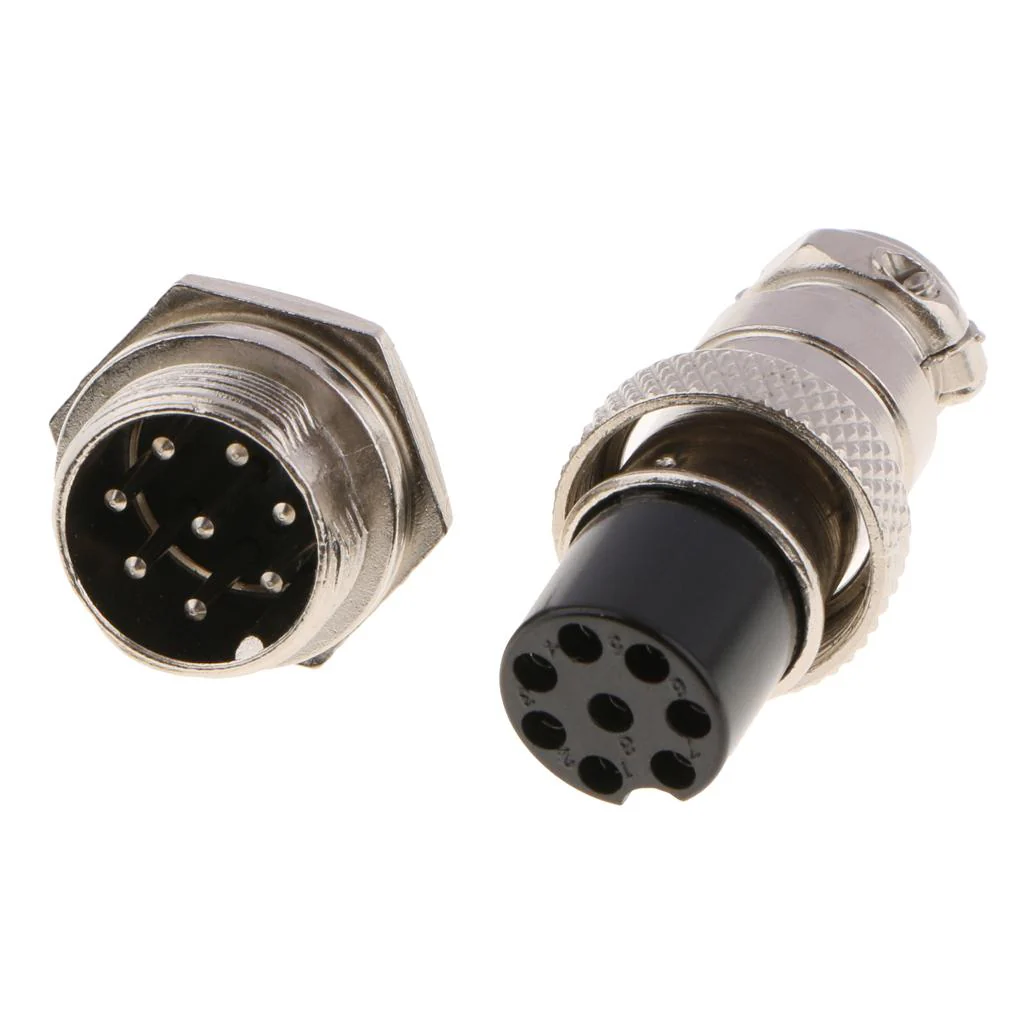

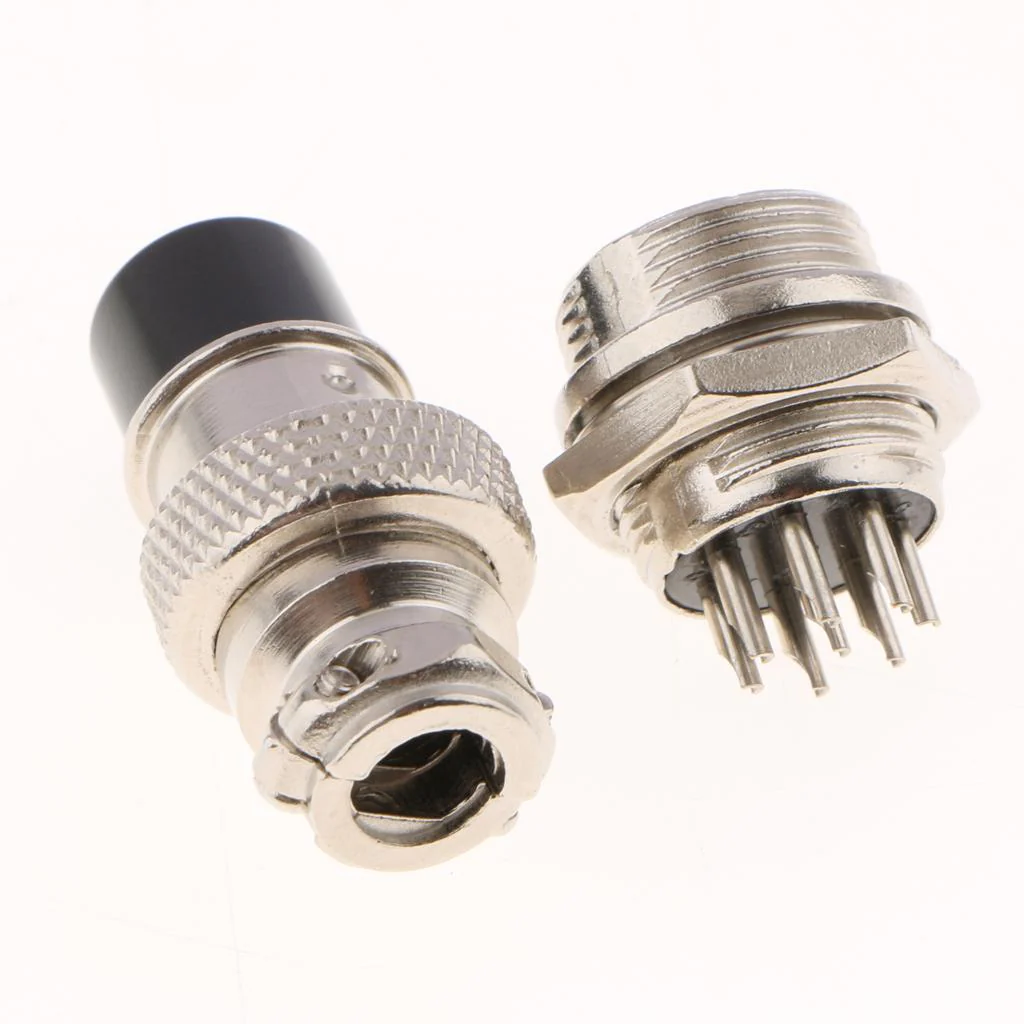

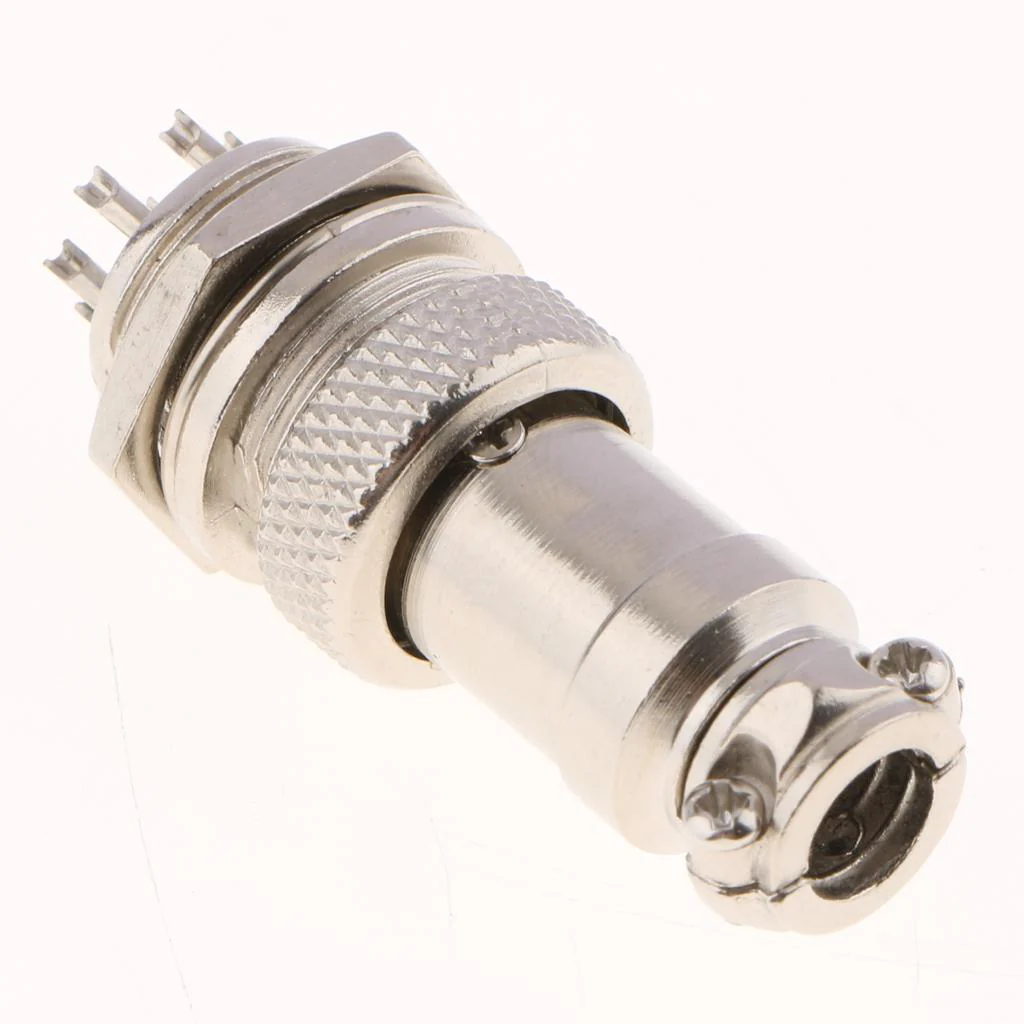

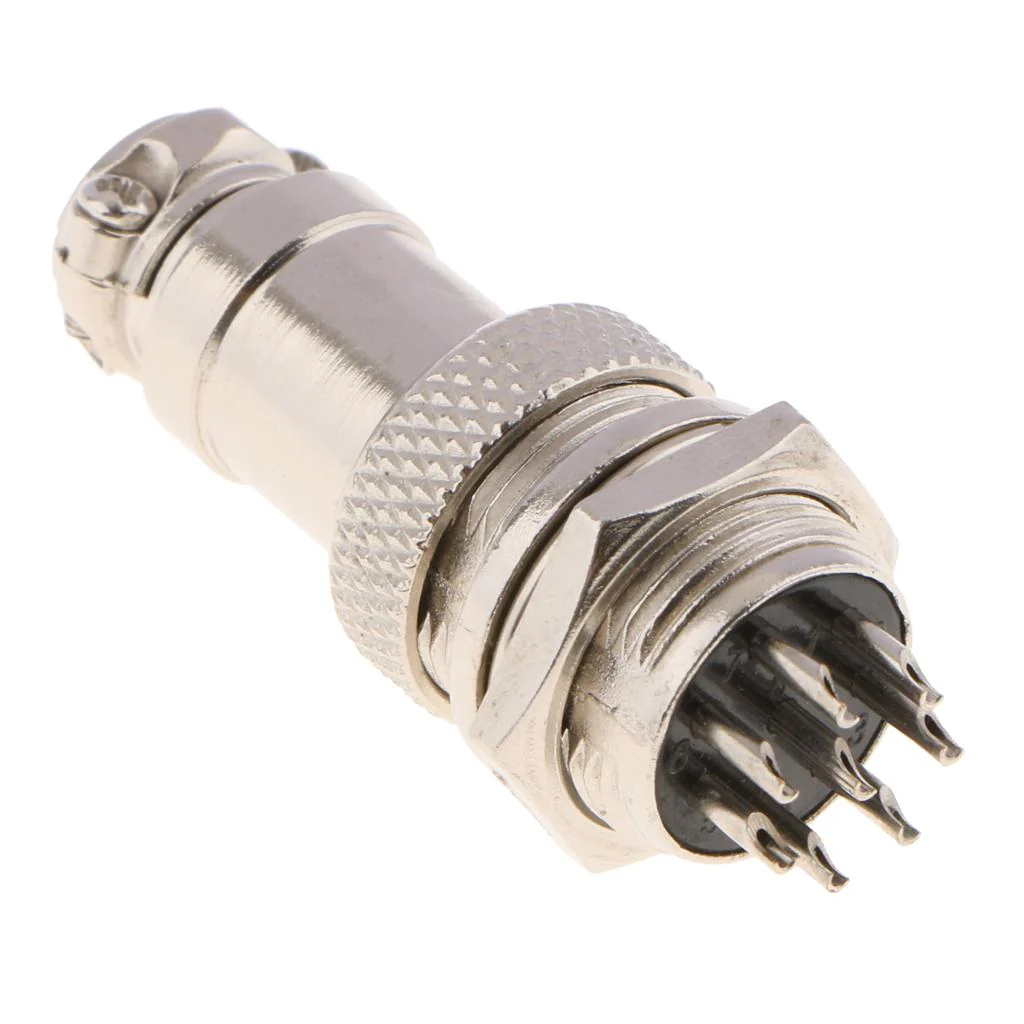

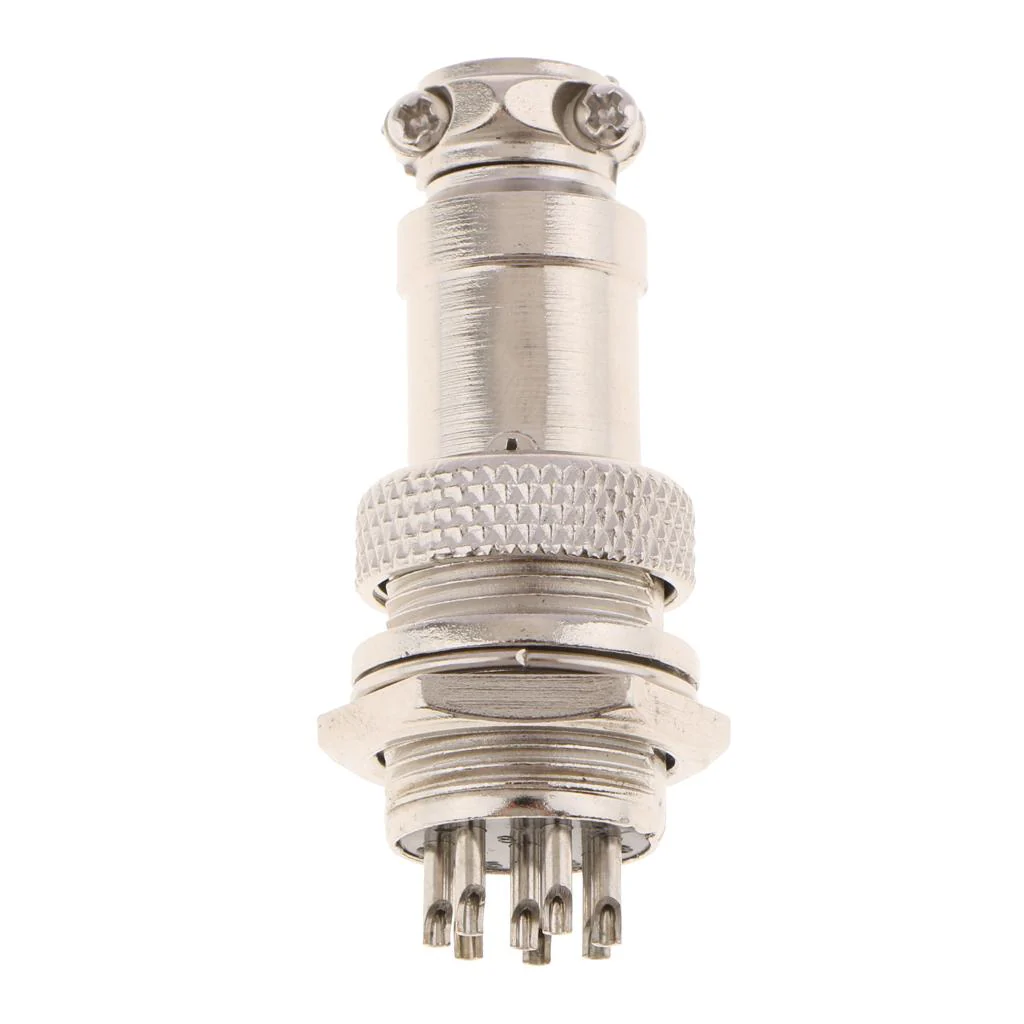

20pairs GX16 16mm Air Plug Aviation Plug And Socket Connectors 8 Pin

Description:

Type:Aviation Plug And Socket Optional:2/3/5/6/8 Pins and sockets Diameter:16mm
Ambient temperature: -50 ~ +70 C Relative humidity: up to 98% at +40 C
Atmospheric pressure: up to 4,4 kpa Centrifugal: acceleration 250m/s2
Vibration: vibration frequency 10 ~ 100Hz, acceleration 100m/s2
Impact: Frequency of 60 to 80 beats / min, acceleration of 250m/s2
Temperature Rise: at rated load, the contact of the temperature rise should not exceed +50 C ambient temperature
Life: after the use of the plugs 500 times, the sockets and outlets should not be damaged.

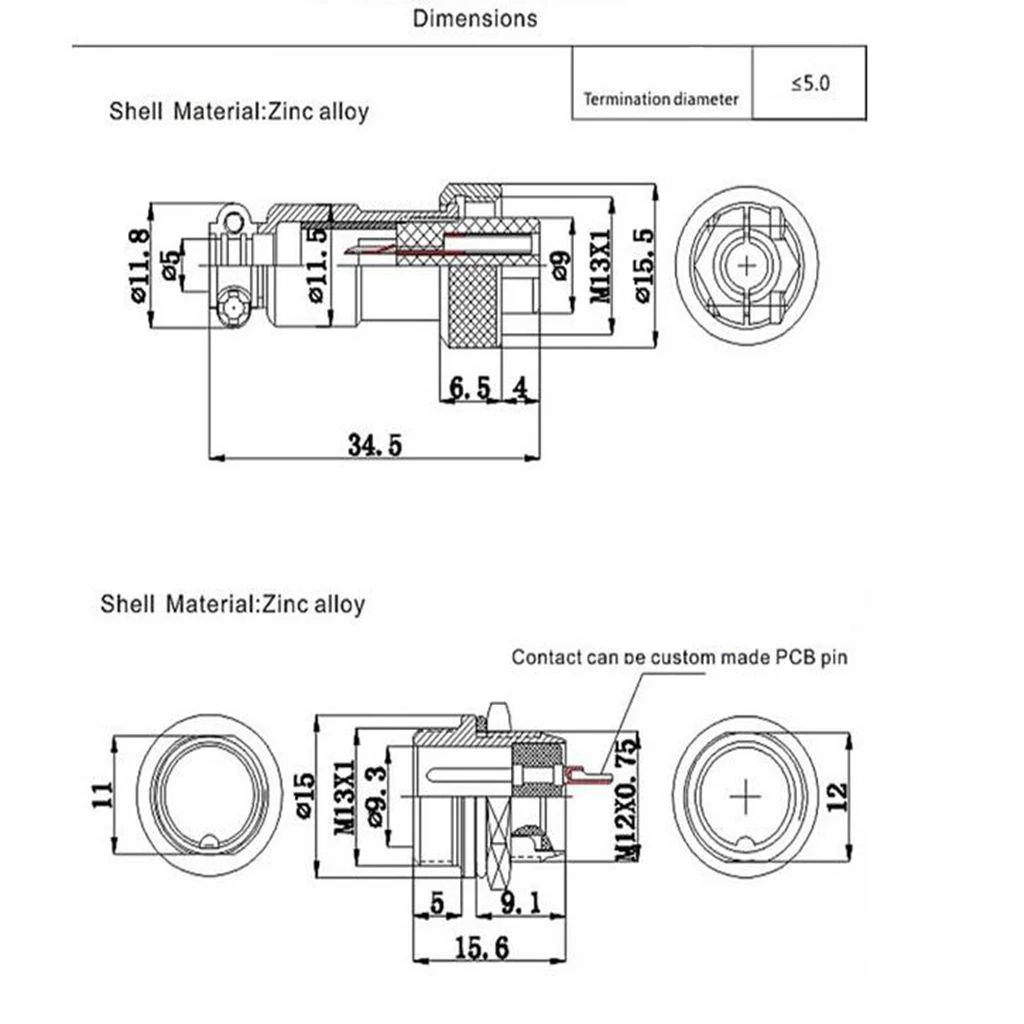

Specification:

Shell Material: Zinc alloy
Total length: 45.7mm/ 1.8inch
Widest diameter: 18.8mm/ 0.74inch
Rated voltage: 2 Pin/ 3 Pin - 400V, 5 Pin/ 6 Pin/ 8 Pin - 250V
Rated current: 5A
Contact resistance: (per contact pair) less than 0.005Ω
Insulation resistance: under normal conditions, not less than 1000MΩ

Package Includes:

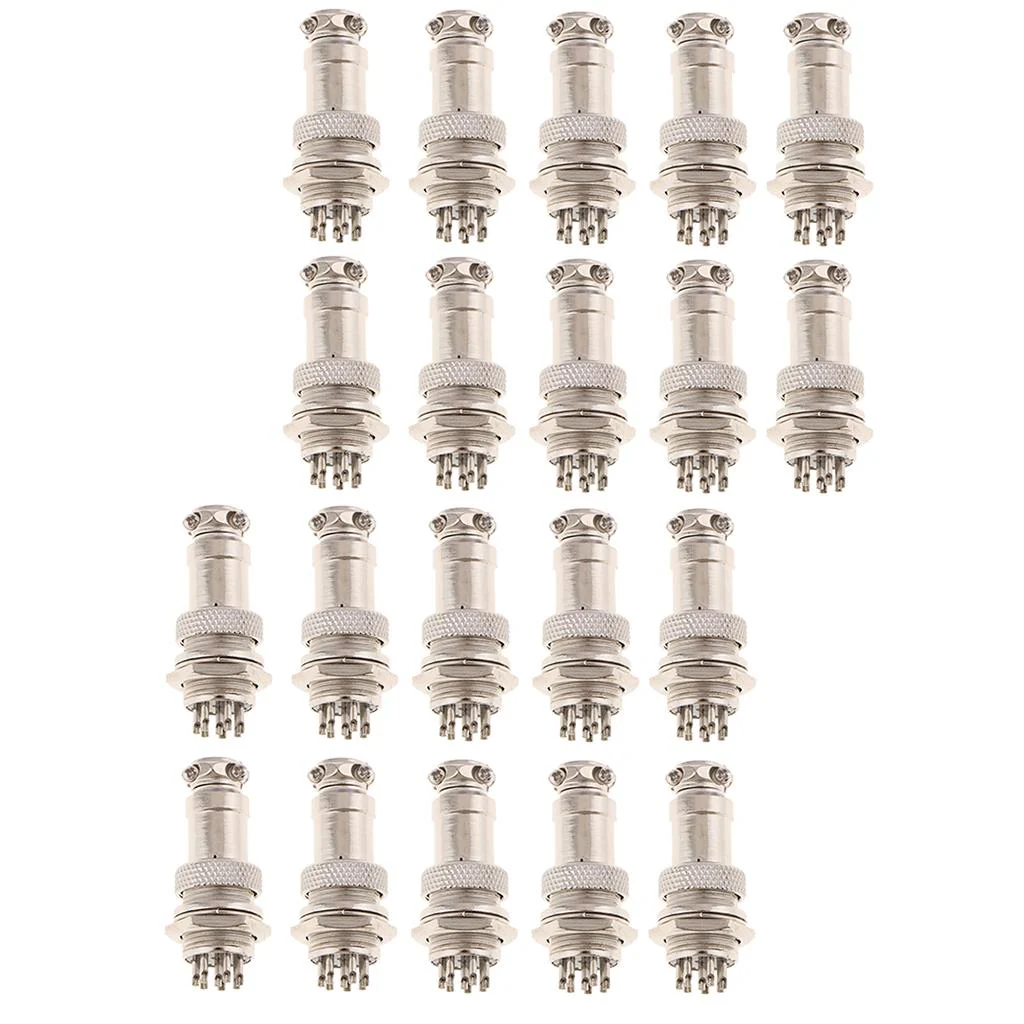

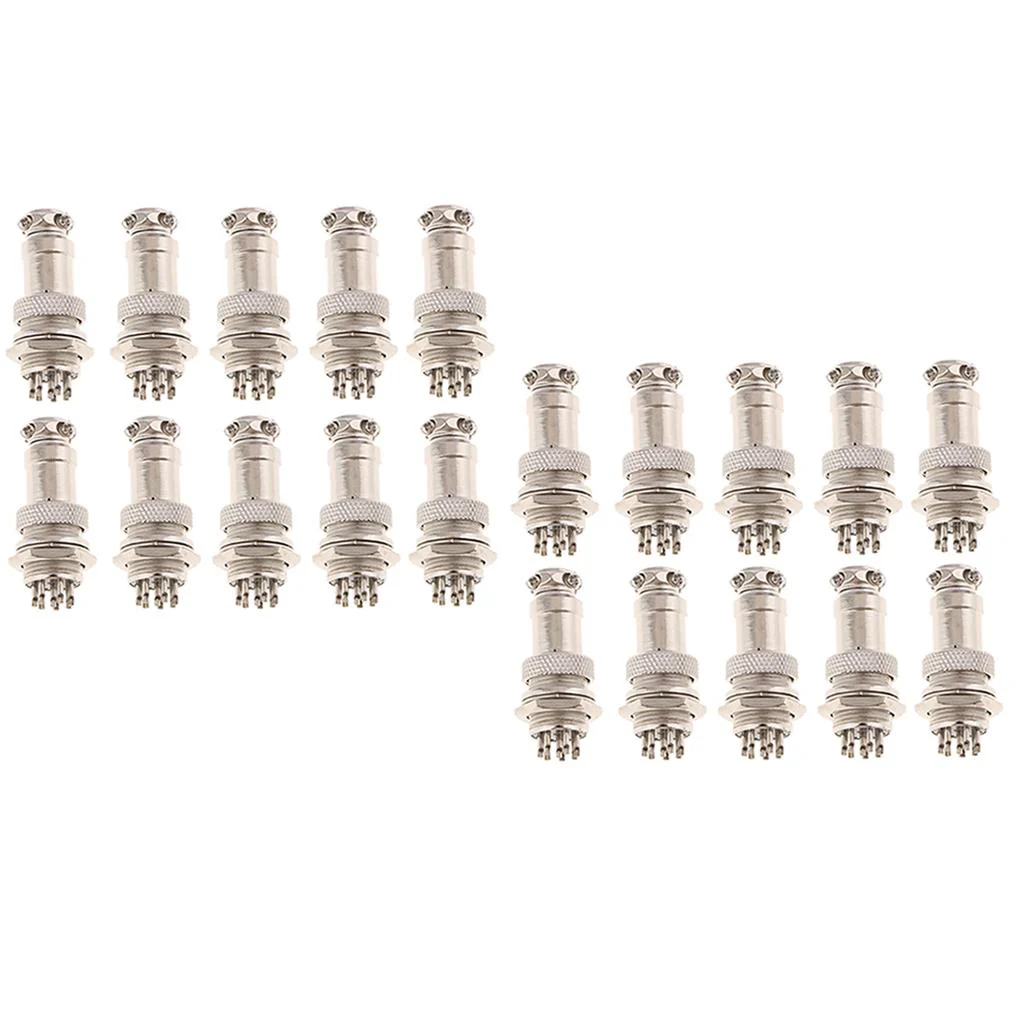

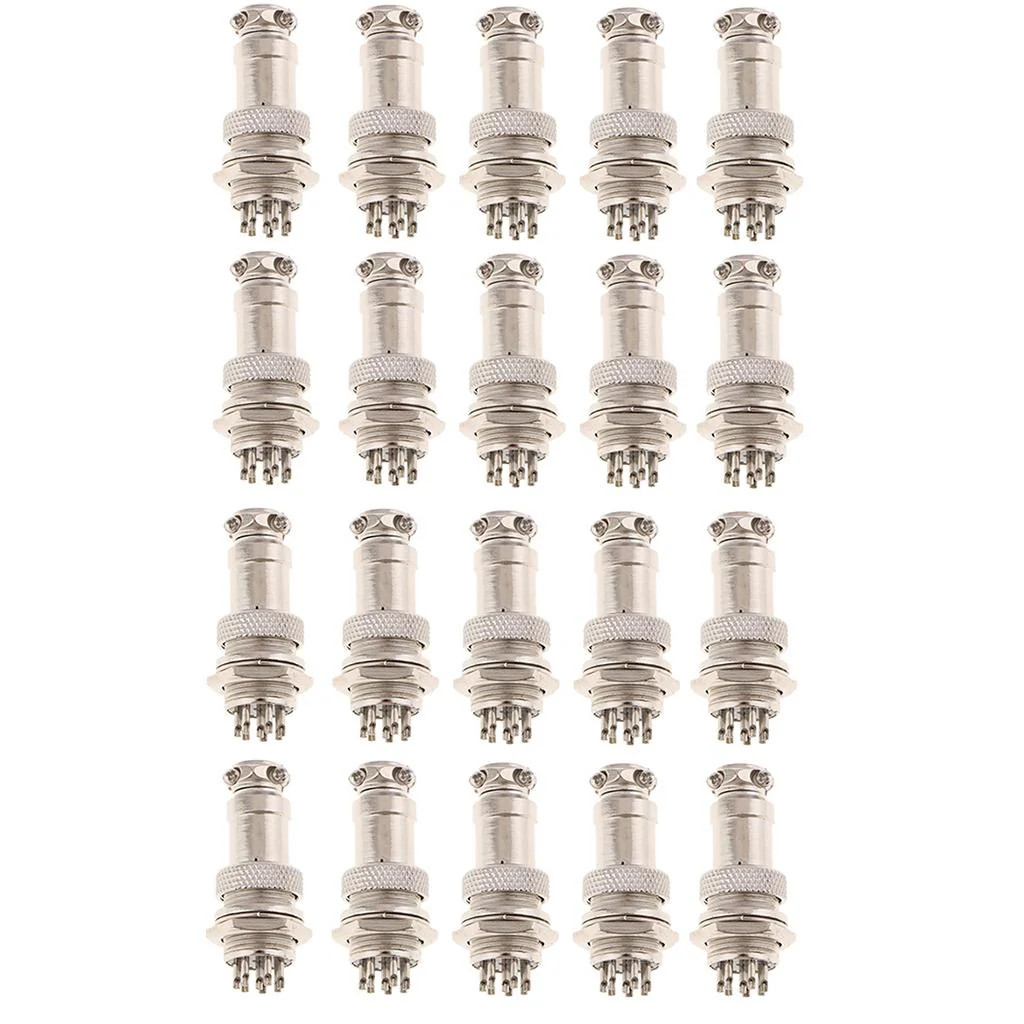

20 Pair GX16 Aviation Plug & Socket
